Turbocharger Harness Routing (LF3)

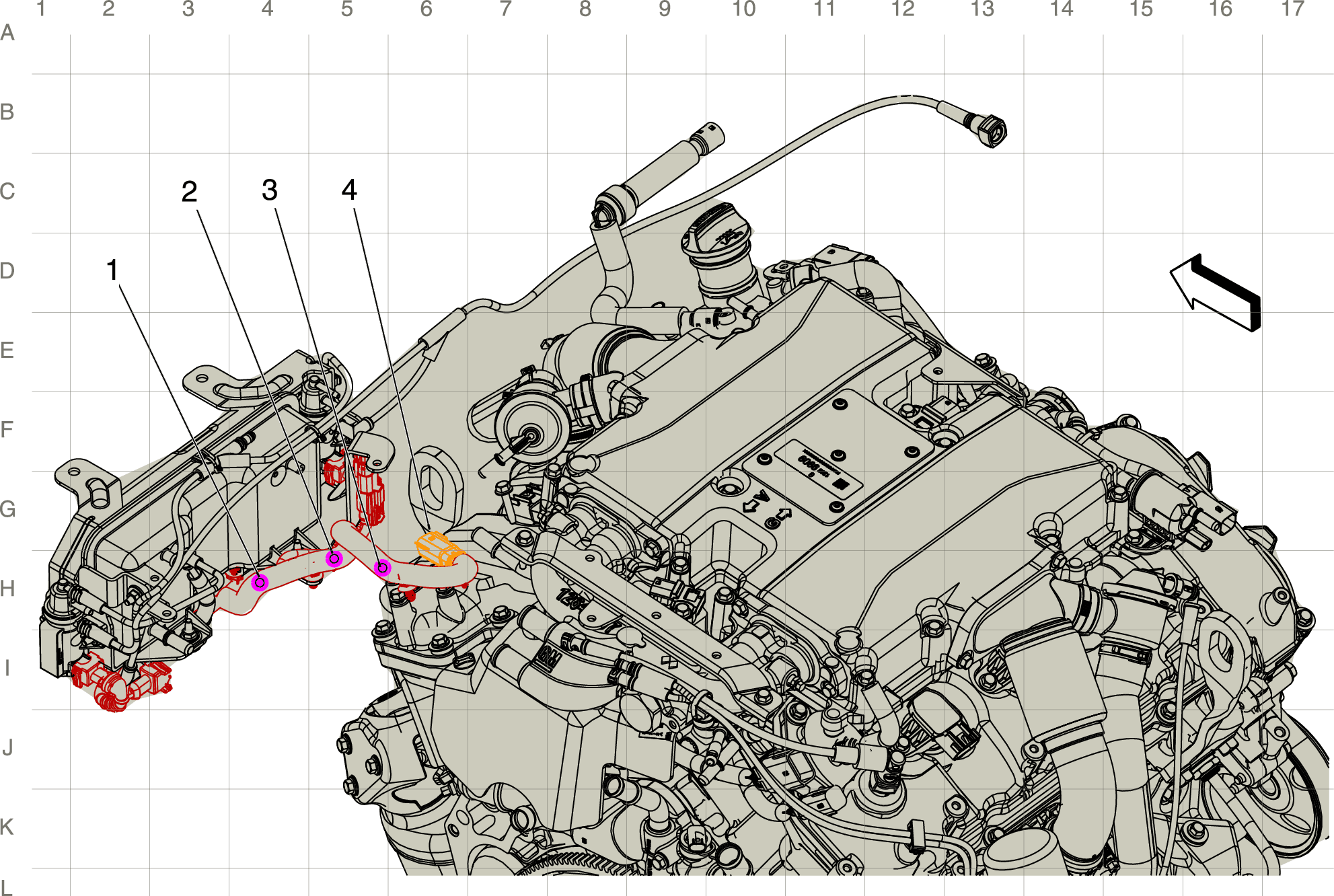

GM3909969Courtesy of GENERAL MOTORS COMPANY
Items
1. J125 Turbocharger Harness (LF3)
2. J123 Turbocharger Harness (LF3)
3. J124 Turbocharger Harness (LF3)
4. X159 Engine Harness to Vacuum Tank Jumper Harness (2 cavities) (LF3) X159 Engine Harness to Vacuum Tank Jumper Harness
