Right Rear Door Harness Routing (1 of 2)

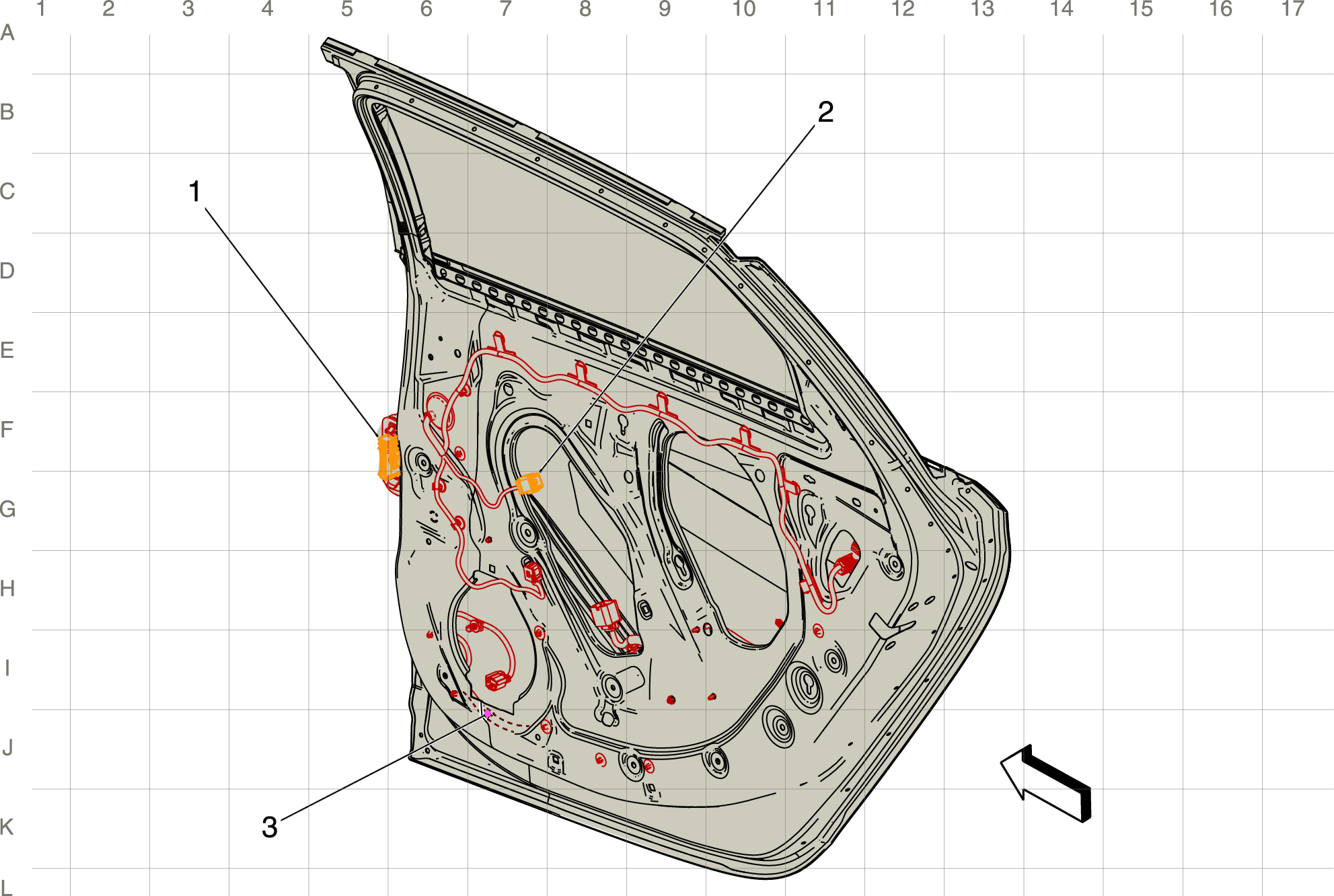

GM2754241Courtesy of GENERAL MOTORS COMPANY
Items
1. X800 Right Rear Door Harness to Body Harness (20 cavities) X800 Right Rear Door Harness to Body Harness
2. X805 Right Rear Door Harness to Right Rear Door Trim Harness (4 cavities) X805 Right Rear Door Harness to Right Rear Door Trim Harness
3. J801 Right Rear Door Harness
