Right Front Door Harness Routing (2 of 2)

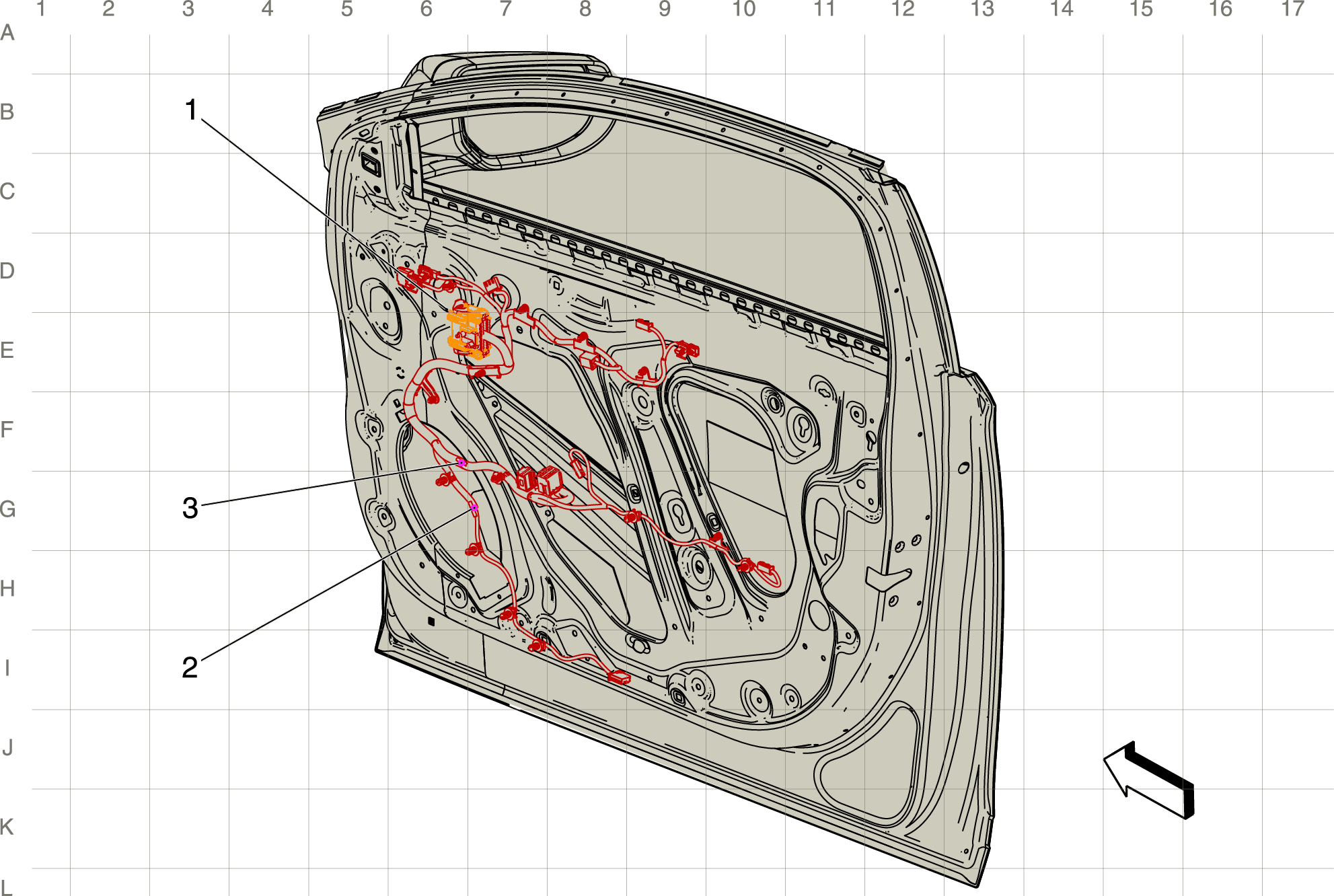

GM2754234Courtesy of GENERAL MOTORS COMPANY
Items
1. X605 Passenger Door Harness to Passenger Door Trim Harness (40 cavities) X605 Passenger Door Harness to Passenger Door Trim Harness
2. J600 Passenger Door Trim Harness
3. J605 Passenger Door Trim Harness
