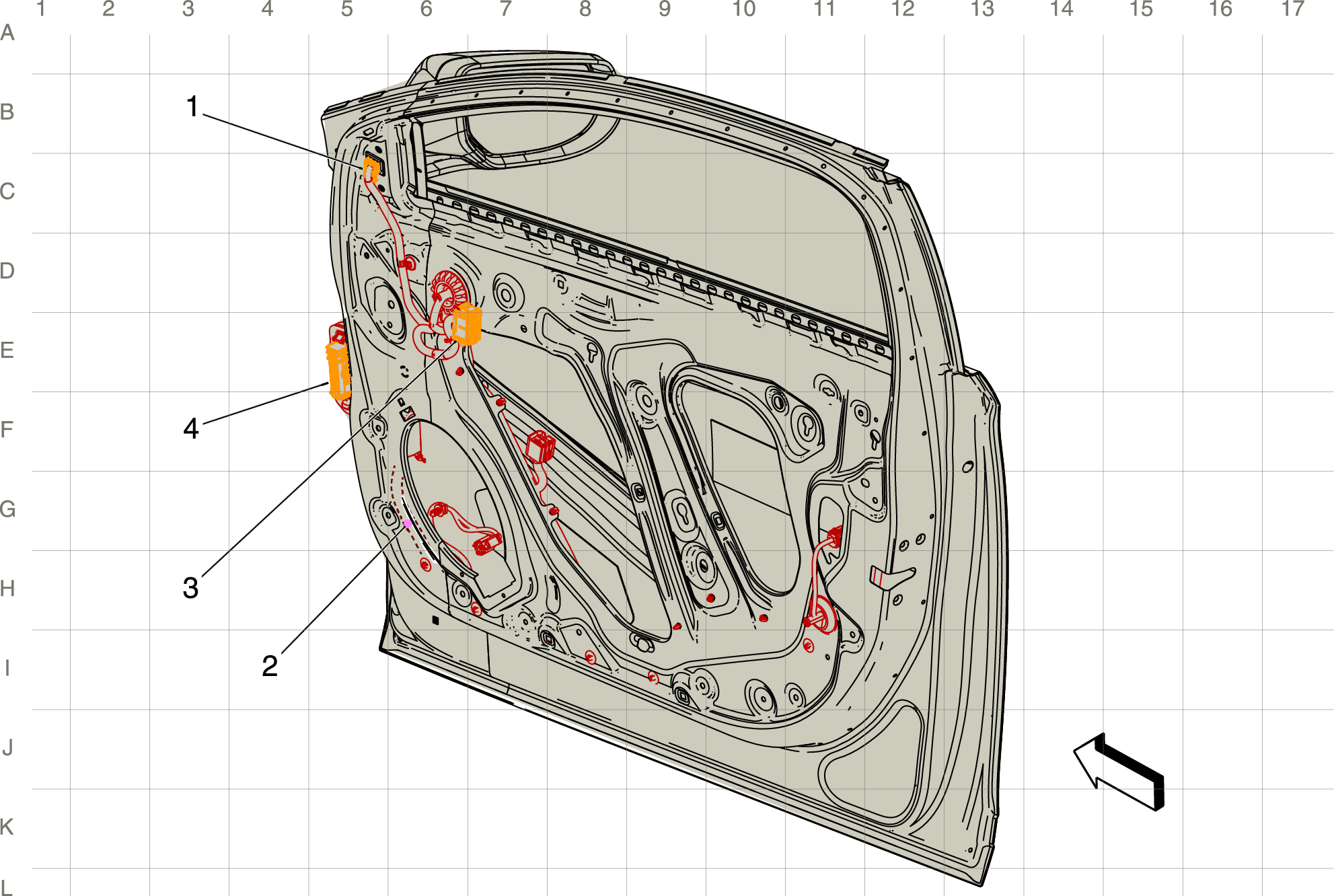

Right Front Door Harness Routing (1 of 2)

Courtesy of GENERAL MOTORS COMPANY

Items
1. X610 Passenger Door Harness to Outside Rearview Mirror - Passenger Harness (18 cavities) X610 Passenger Door Harness to Outside Rearview Mirror - Passenger Harness (-UVH) , or X610 Passenger Door Harness to Outside Rearview Mirror - Passenger Harness (UVH)
2. J650 Passenger Door Harness
3. X605 Passenger Door Harness to Passenger Door Trim Harness (40 cavities) X605 Passenger Door Harness to Passenger Door Trim Harness
4. X600 Passenger Door Harness to Body Harness (41 cavities) X600 Passenger Door Harness to Body Harness
