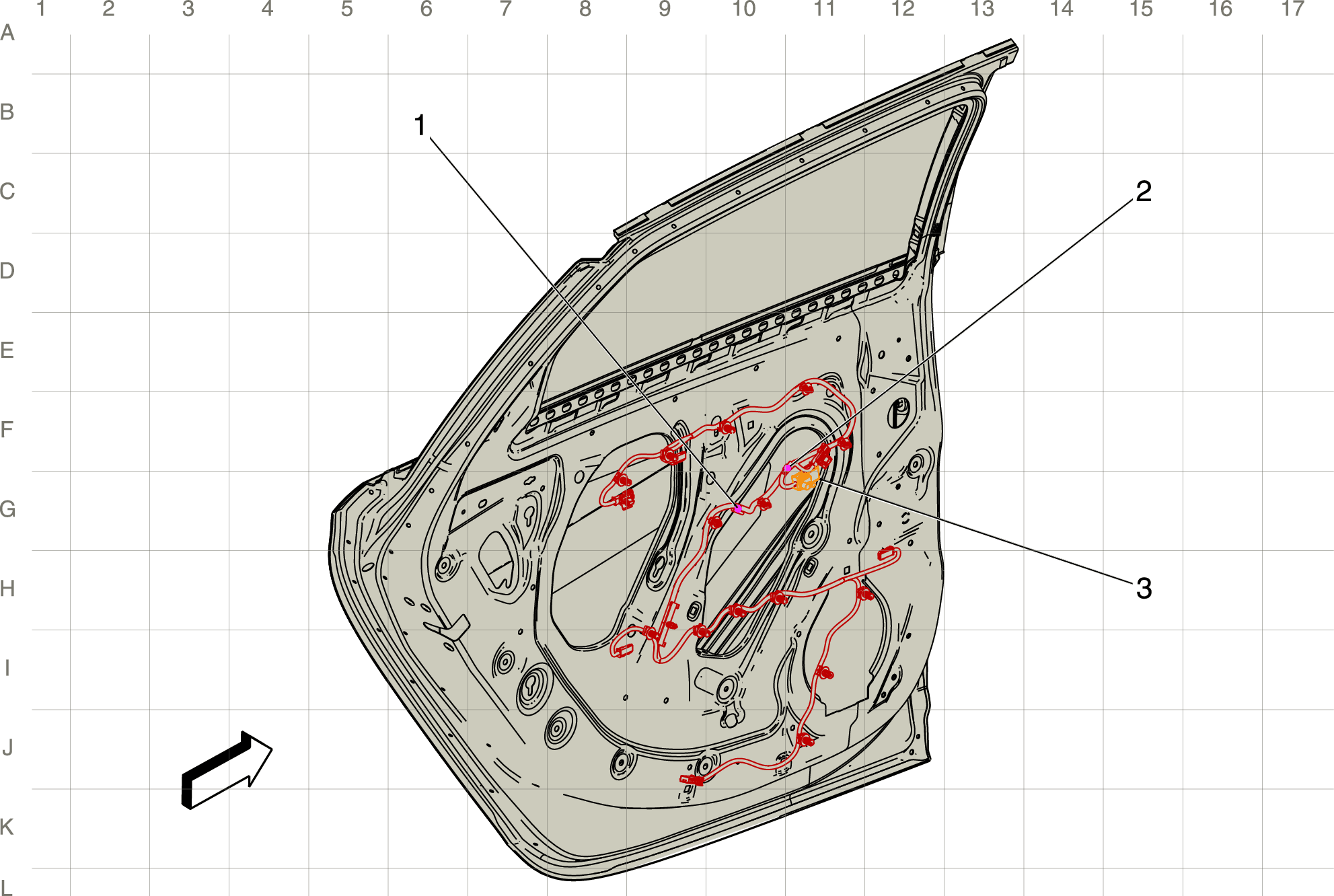

Left Rear Door Harness Routing (2 of 2)

GM2754239Courtesy of GENERAL MOTORS COMPANY
Items
1. J705 Left Rear Door Trim Harness
2. J703 Left Rear Door Harness
3. X705 Left Rear Door Harness to Left Rear Door Trim Harness (4 cavities) X705 Left Rear Door Harness to Left Rear Door Trim Harness
