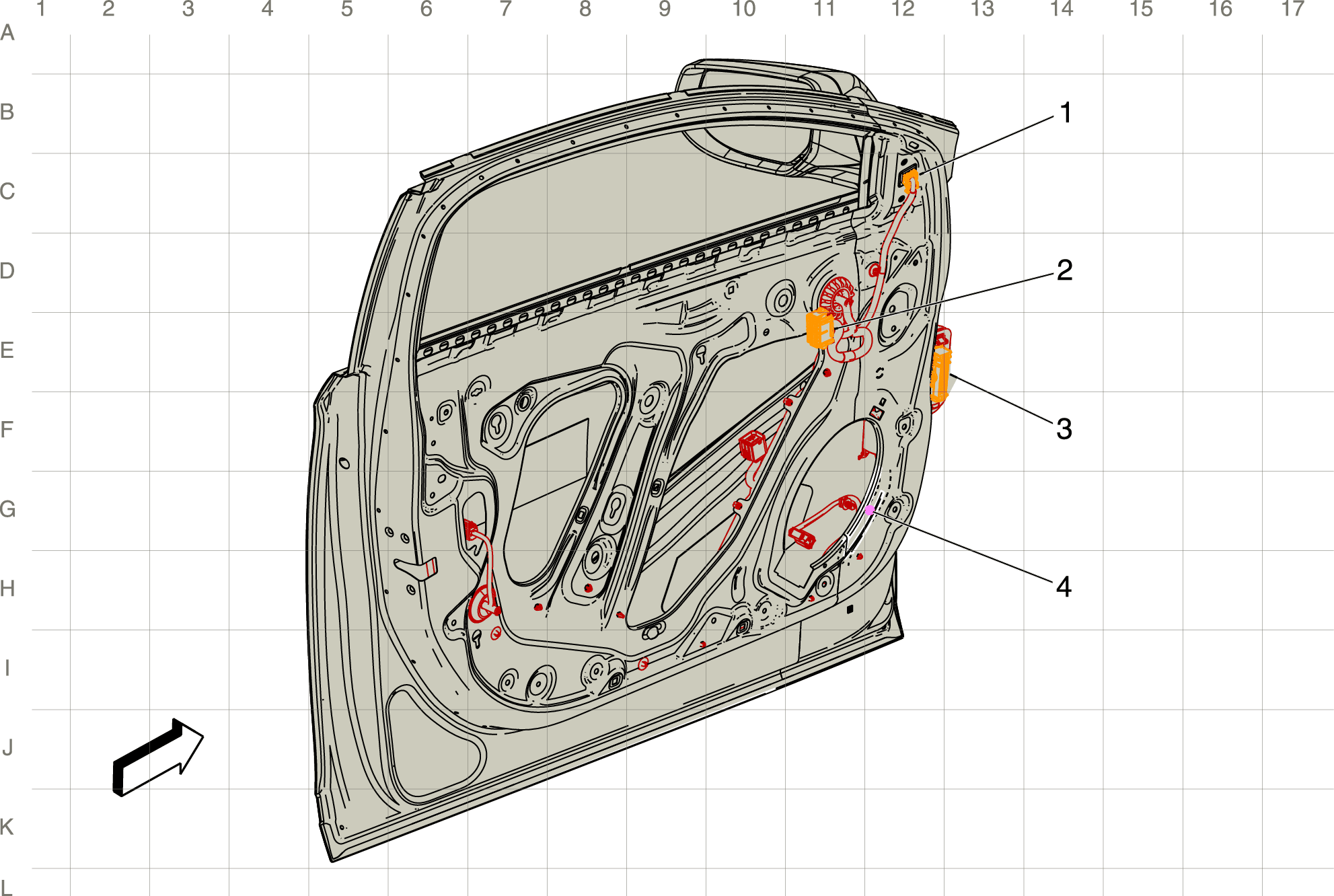

Left Front Door Harness Routing (1 of 2)
| Items |
|---|
| 1. X510 Driver Door Harness to Outside Rearview Mirror - Driver Harness (18 cavities) X510 Driver Door Harness to Outside Rearview Mirror - Driver Harness (-UVH) , or X510 Driver Door Harness to Outside Rearview Mirror - Driver Harness (UVH) |
| 2. X505 Driver Door Harness to Driver Door Trim Harness (40 cavities) X505 Driver Door Harness to Driver Door Trim Harness |
| 3. X500 Driver Door Harness to Body Harness (41 cavities) X500 Driver Door Harness to Body Harness |
| 4. J504 Driver Door Harness |
