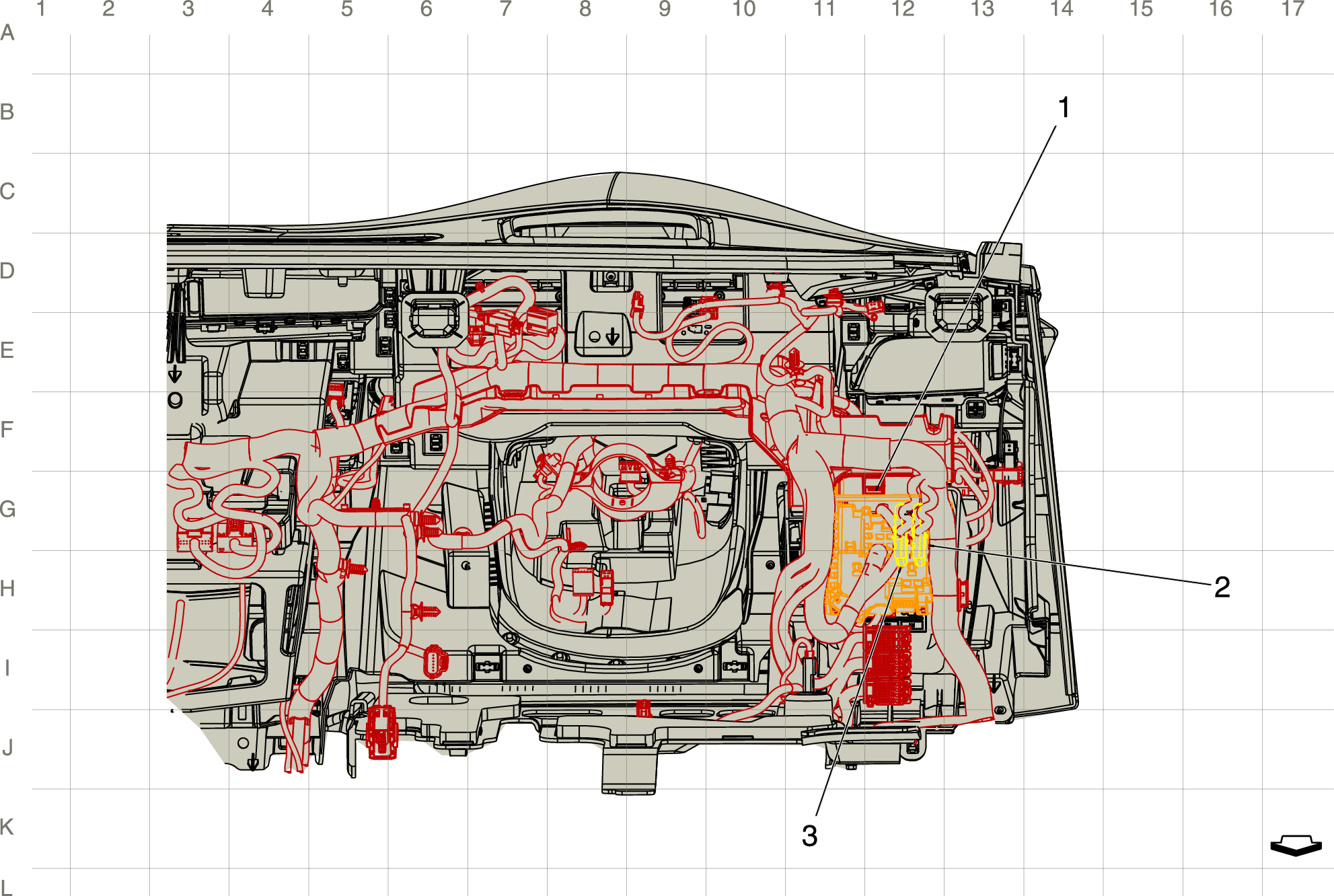

Instrument Panel Harness Routing - Behind the Lower Left Side

GM4550228Courtesy of GENERAL MOTORS COMPANY
Items
1. X51A Fuse Block - Instrument Panel X51A Fuse Block - Instrument Panel X0 ((Fuses CZ2)) , or X51A Fuse Block - Instrument Panel X1 , or X51A Fuse Block - Instrument Panel X2
2. JX200 Instrument Panel Harness JX200 Splice Pack
3. JX201 Instrument Panel Harness
