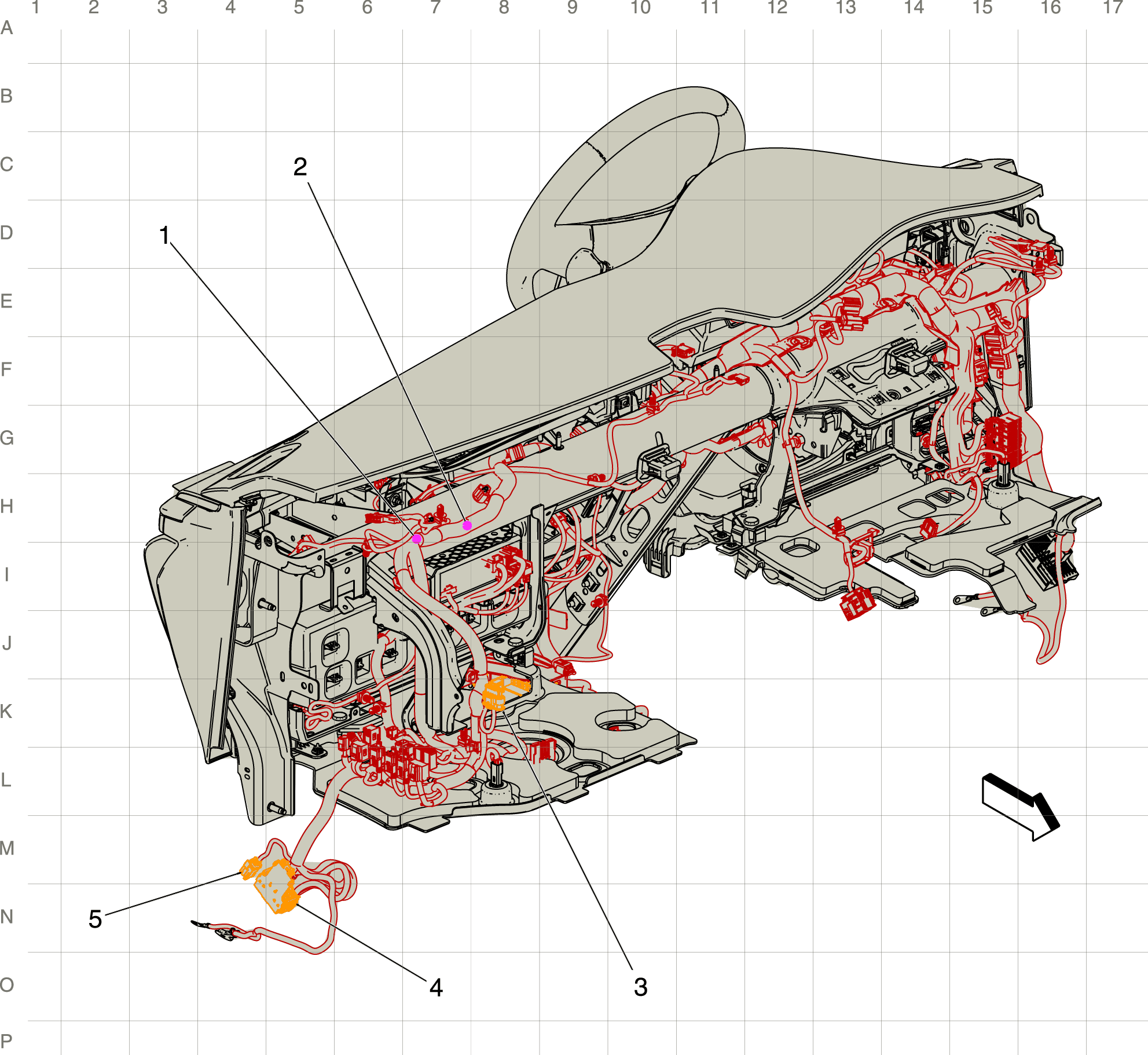

Instrument Panel Harness Routing - Behind and Left Side
| Items |
|---|
| 1. J220 |
| 2. J235 Instrument Panel Harness |
| 3. X205 Instrument Panel Harness to Passenger Instrument Panel Air Bag Jumper Harness (6 cavities) X205 Instrument Panel Harness to Passenger Instrument Panel Air Bag Jumper Harness |
| 4. X220 Instrument Panel Harness to Body Harness (56 cavities) X220 Instrument Panel Harness to Body Harness (-CZ2) , or X220 Instrument Panel Harness to Body Harness (CZ2) |
| 5. X232 |
