Front Fascia Harness Routing

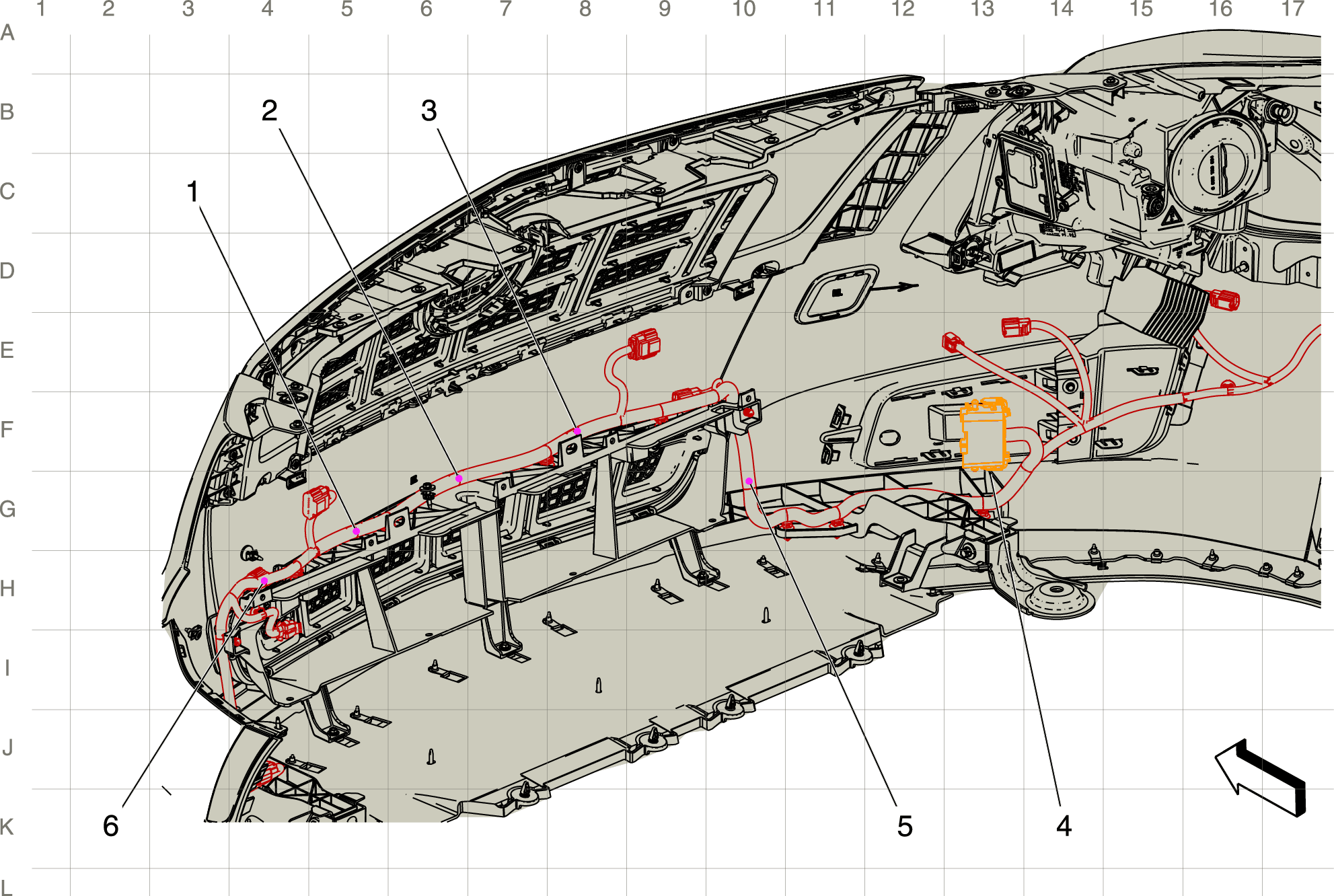

GM2754113Courtesy of GENERAL MOTORS COMPANY
Items
1. J104 Front Fascia Harness
2. J105 Front Fascia Harness
3. J113 Front Fascia Harness
4. X105 Front Fascia Harness to Forward Lamp Harness (24 cavities) X105 Forward Lamp Harness to Front Fascia Harness (-CZ2) , or X105 Front Fascia Harness to Forward Lamp Harness (CZ2)
5. J115 Front Fascia Harness
6. J111 Front Fascia Harness
