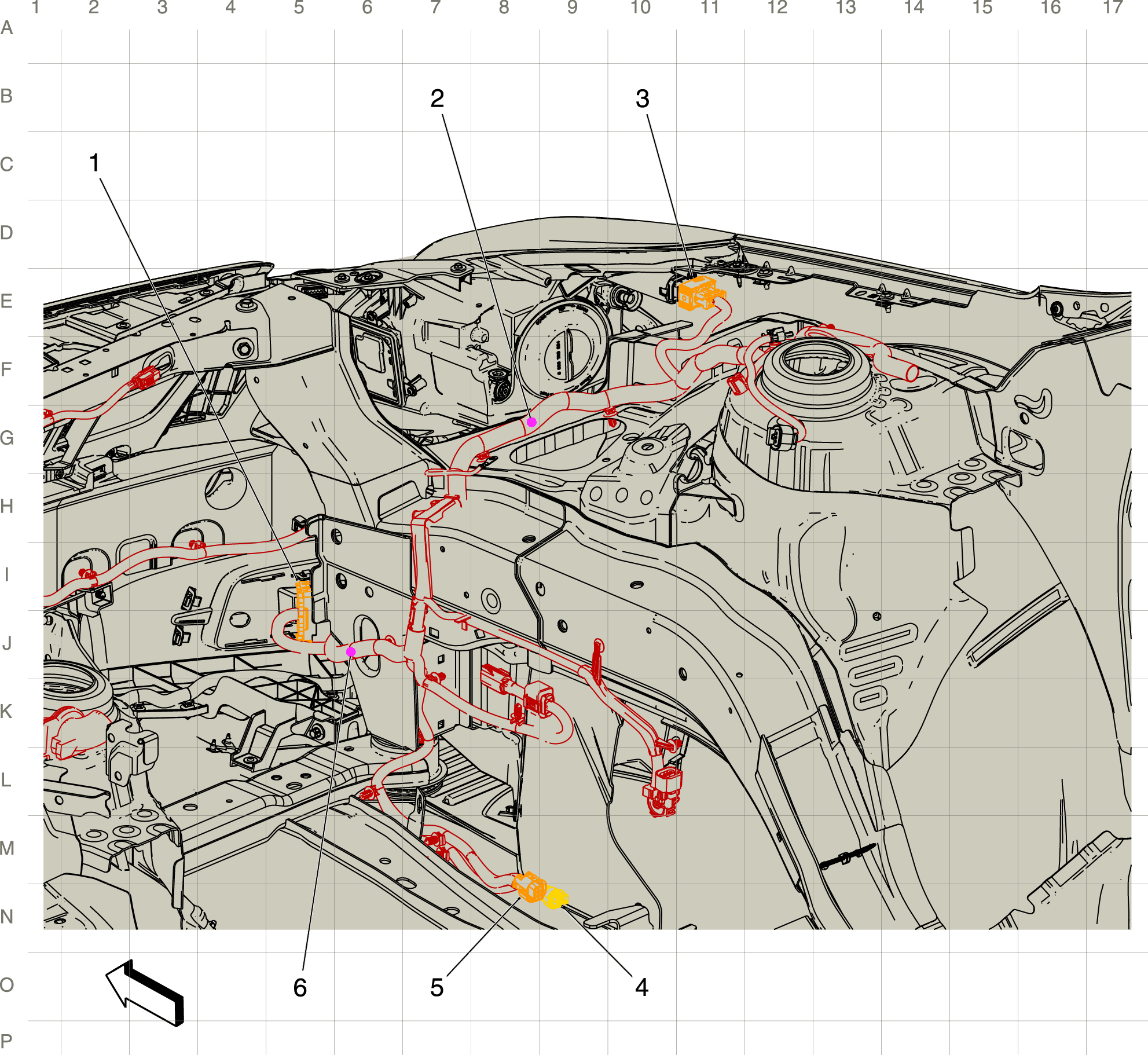

Forward Lamp Harness Routing - Right Front of the Engine Compartment

Courtesy of GENERAL MOTORS COMPANY

Items
1. X105 Front Fascia Harness to Forward Lamp Harness (24 cavities) X105 Forward Lamp Harness to Front Fascia Harness (-CZ2) , or X105 Front Fascia Harness to Forward Lamp Harness (CZ2)
2. J102 Forward Lamp Harness
3. X120 Forward Lamp Harness to Right Headlamp Harness (10 cavities) X120 Forward Lamp Harness to Right Headlamp Harness (CZ2+9H8) , or X120 Forward Lamp Harness to Right Headlamp Harness (CZ2-9H8) , or X120 Forward Lamp Harness to Right Headlamp Harness (-CZ2)
4. X140
5. X125 Forward Lamp Harness to Axle Jumper Harness (6 cavities) X125 Forward Lamp Harness to Axle Jumper Harness
6. J127 Forward Lamp Harness
