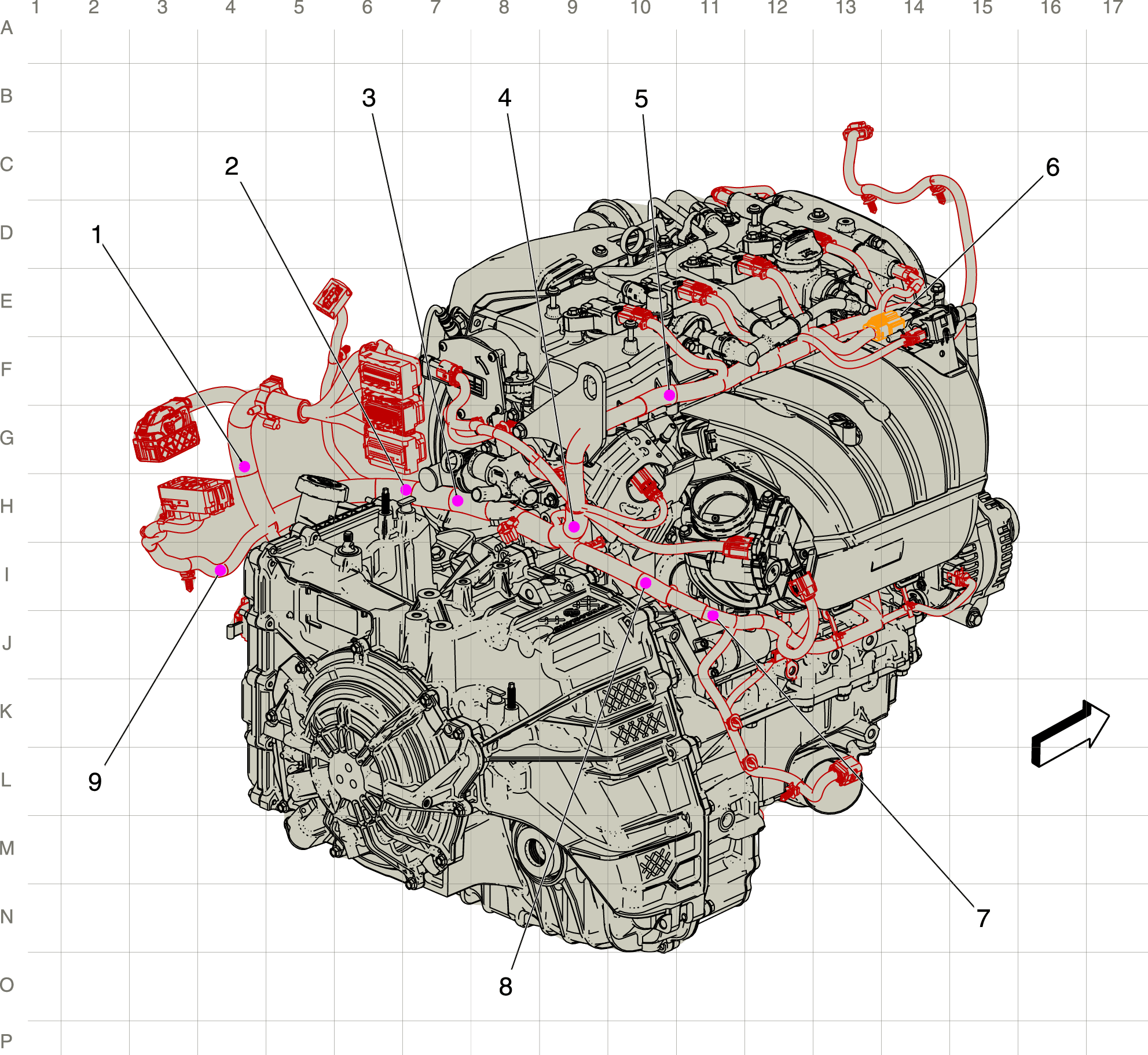

Engine Harness Routing - Left and Rear (LTG)
| Items |
|---|
| 1. J103 Engine Harness |
| 2. J121 Engine Harness |
| 3. J107 Engine Harness |
| 4. J108 Engine Harness |
| 5. J122 Engine Harness |
| 6. X160 Engine Harness to Fuel Injector Harness (12 cavities) X160 Engine Harness to Fuel Injector - Odd Harness (LF3/LFX) , or X160 Engine Harness to Fuel Injector Harness (LTG) |
| 7. J106 Engine Harness |
| 8. J120 Engine Harness |
| 9. J112 Engine Harness |
