Engine Harness Routing - Left Front of the Engine Compartment

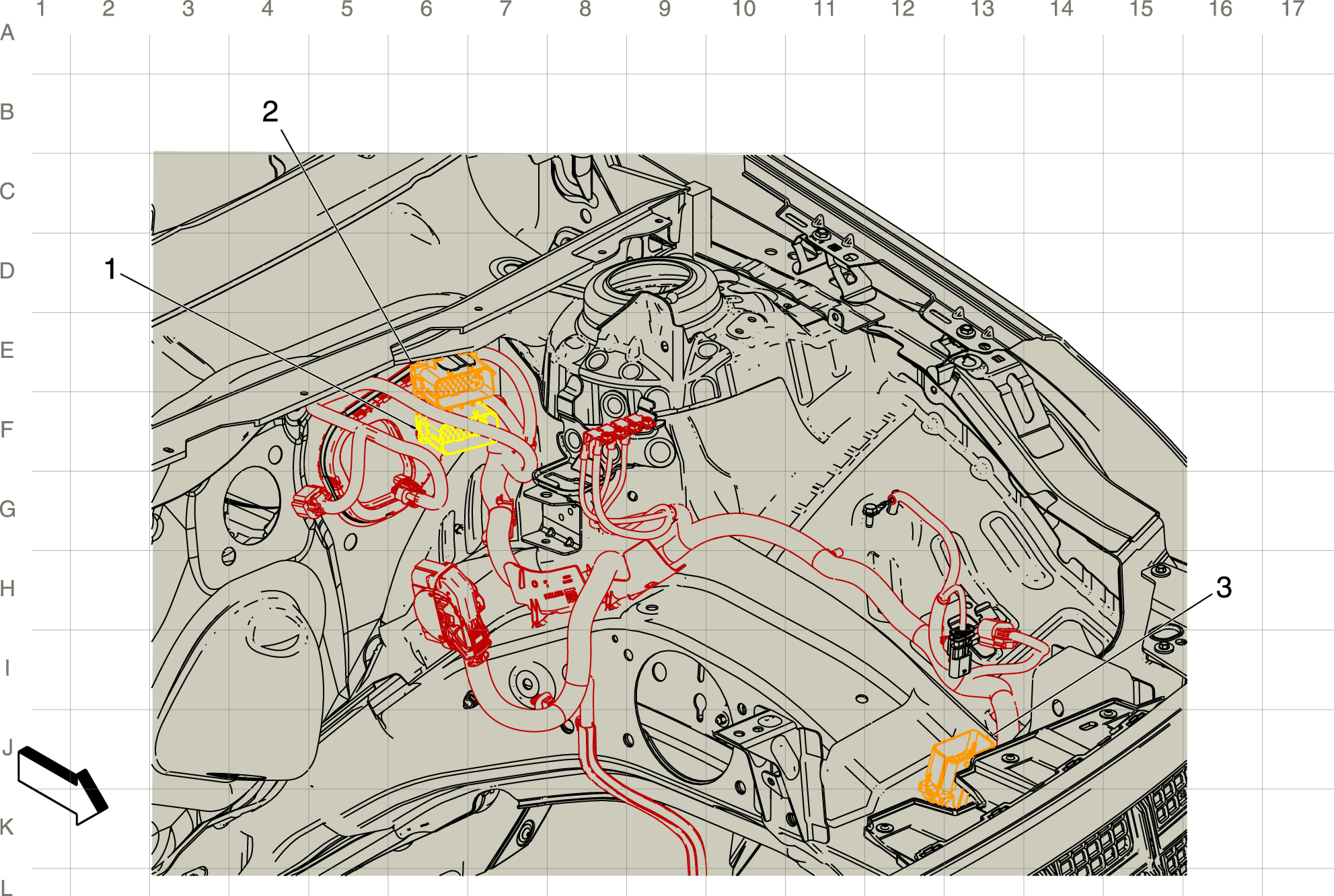

GM2754116Courtesy of GENERAL MOTORS COMPANY
Items
1. X154 Forward Lamp Harness to Body Harness (40 cavities) X154 Forward Lamp Harness to Body Harness
2. X150 Forward Lamp Harness to Body Harness (40 cavities) X150 Forward Lamp Harness to Body Harness
3. X115 Engine Harness to Body Harness (40 cavities) X115 Engine Harness to Body Harness
