Cooling Fans Harness Routing

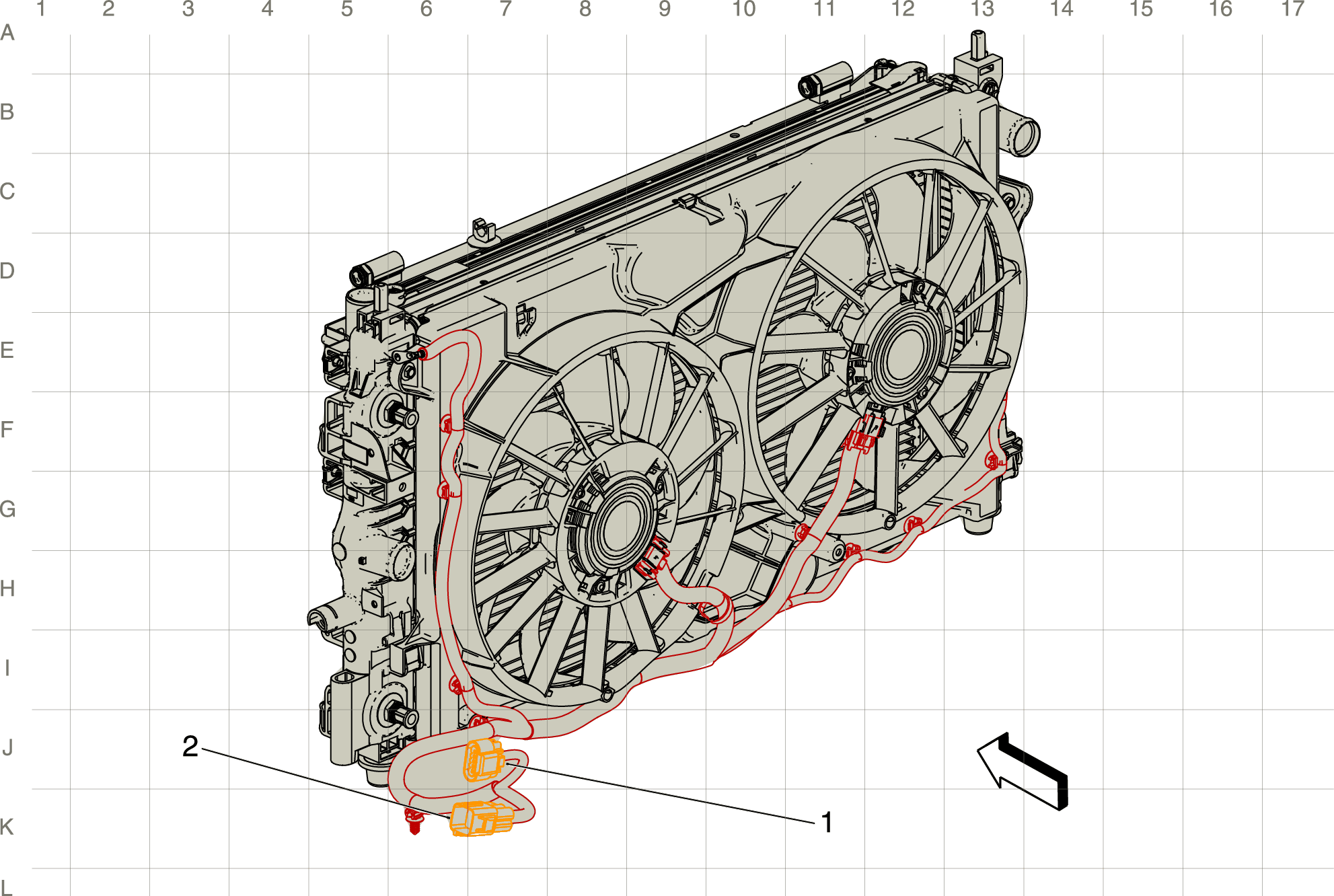

GM2754114Courtesy of GENERAL MOTORS COMPANY
Items
1. X117 Cooling Fan Harness to Forward Lamp Harness (5 cavities) X117 Cooling Fan Harness to Forward Lamp Harness
2. X116 Forward Lamp Harness to Cooling Fan Harness (4 cavities) X116 Forward Lamp Harness to Cooling Fan Harness (LF3/LFX) , or X116 Forward Lamp Harness to Cooling Fan Harness (LTG)
