Body Harness Routing - Right Side of the Luggage Compartment (B9Q/V4U)

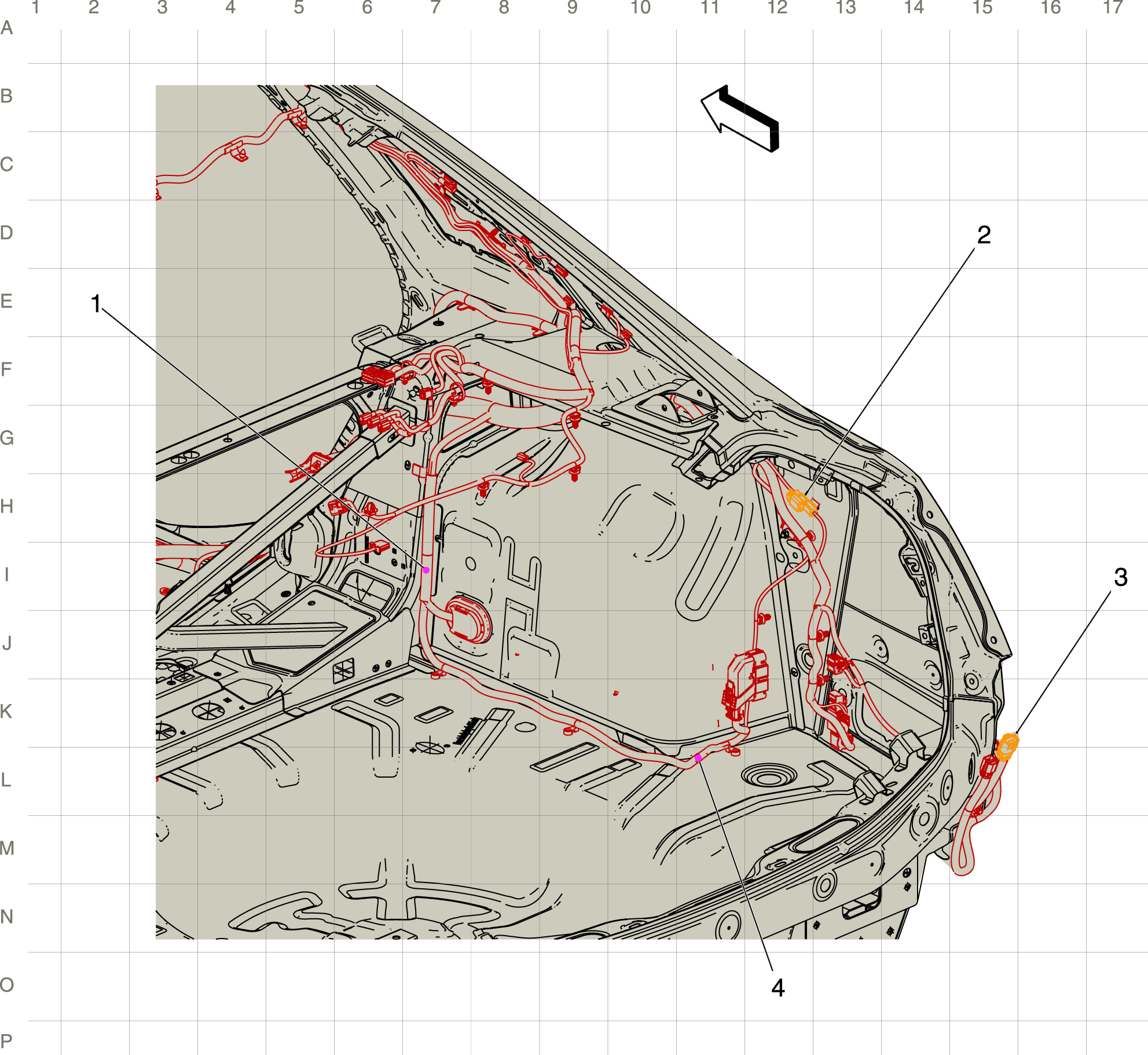

GM2754221Courtesy of GENERAL MOTORS COMPANY
Items
1. J434 Body Harness
2. X450
3. X420 Body Harness to Tail Lamp Assembly - Right Harness (4 cavities) X420 Body Harness to Tail Lamp Assembly - Right Harness (-CZ2) , or X420 Body Harness to Tail Lamp Assembly - Right Harness (CZ2)
4. J455 Body Harness
