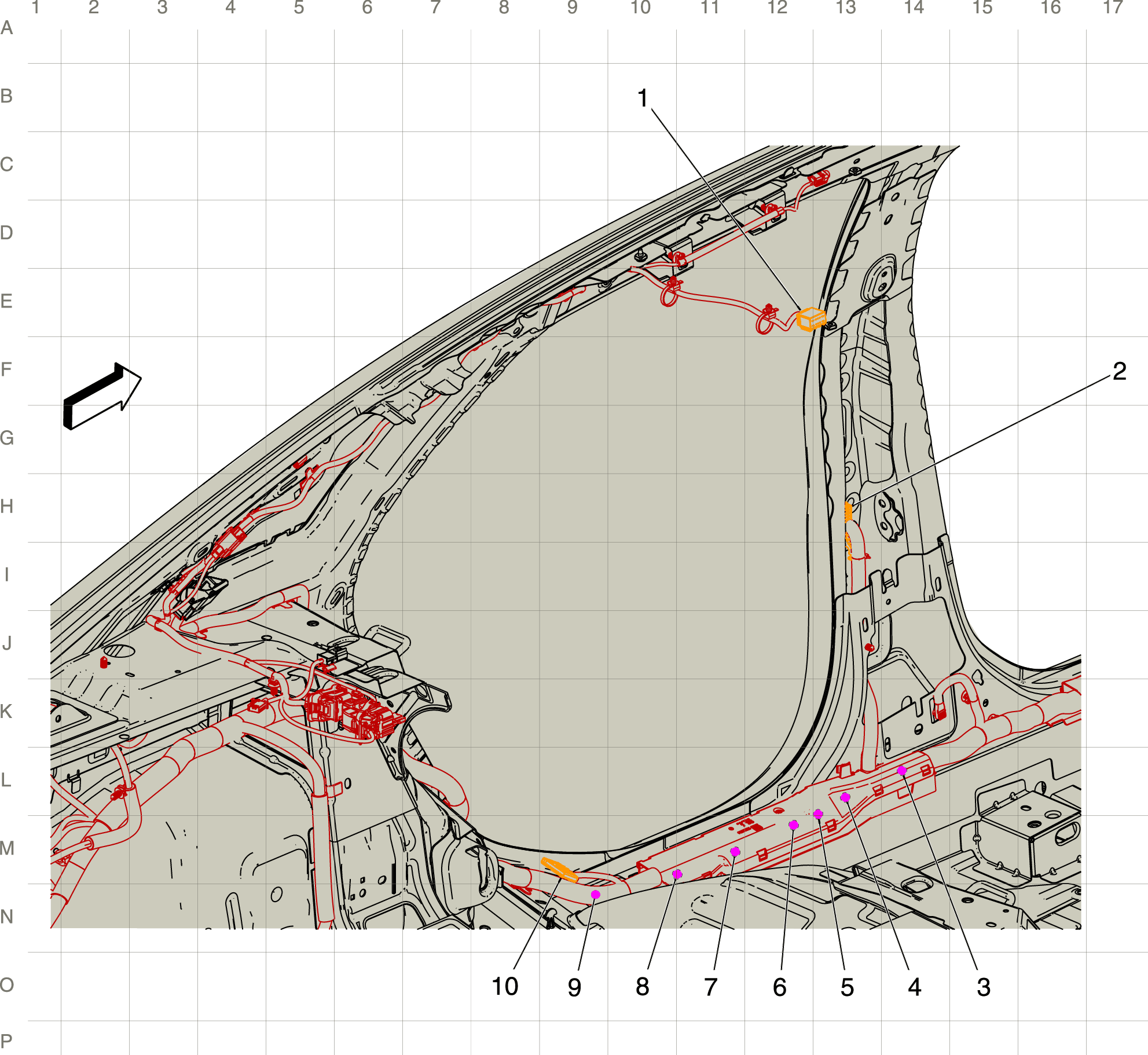

Body Harness Routing - Right Rear of the Passenger Compartment (-B9Q/V4U)
| Items |
|---|
| 1. X800 Right Rear Door Harness to Body Harness (20 cavities) X800 Right Rear Door Harness to Body Harness |
| 2. X360 |
| 3. X355 Rear Seat Harness to Body Harness (10 cavities) (KA6+CZ2) X355 Rear Seat Harness to Body Harness |
| 4. J344 Body Harness |
| 5. J343 Body Harness |
| 6. J349 Body Harness |
| 7. J348 Body Harness |
| 8. J328 Body Harness |
| 9. J341 Body Harness |
