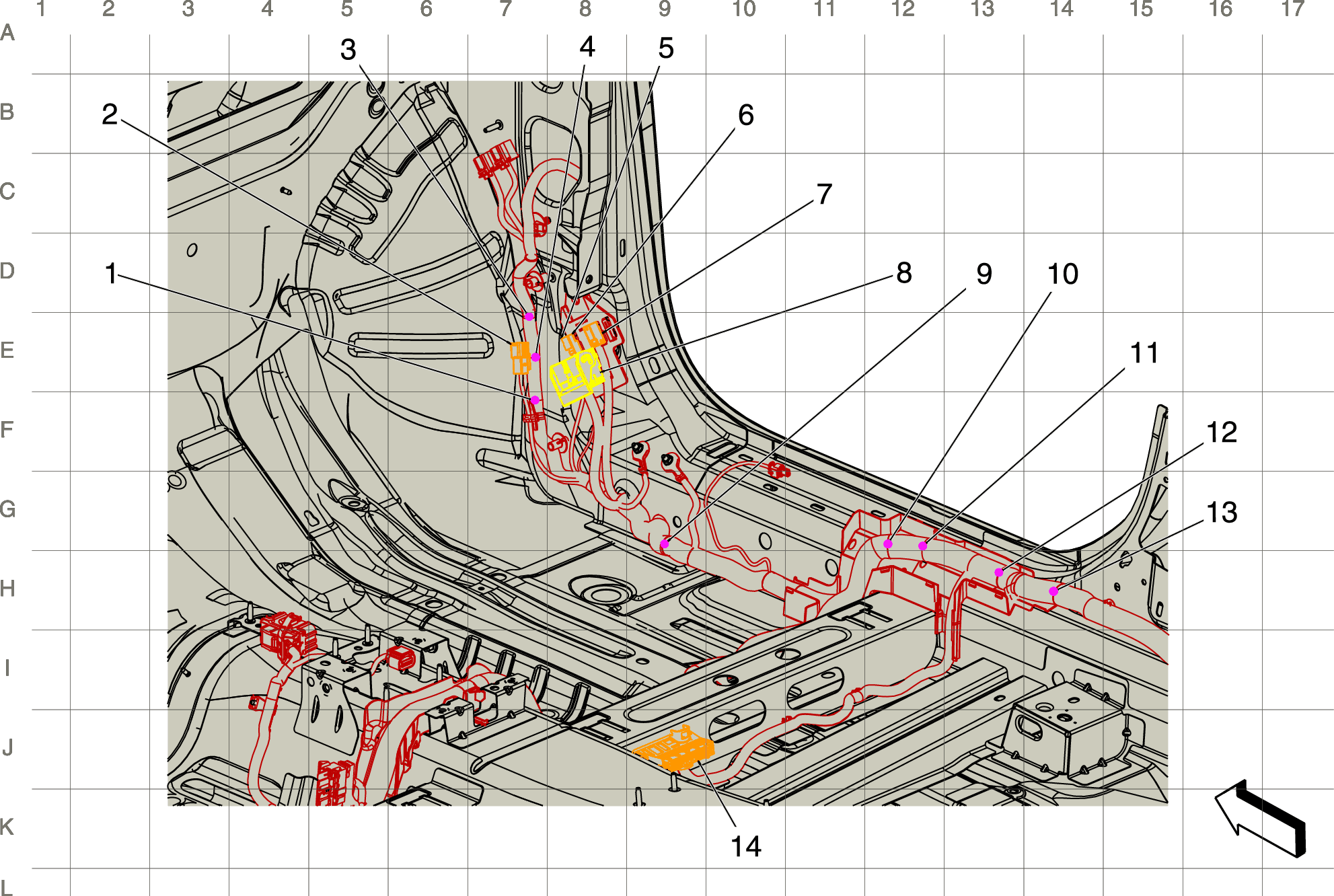

Body Harness Routing - Right Front of the Passenger Compartment (-B9Q/V4U)

Courtesy of GENERAL MOTORS COMPANY

Items
1. J320 Body Harness
2. X211 Instrument Panel Harness to Body Harness X211 Instrument Panel Harness to Body Harness (UE1)
3. J221 Body Harness
4. J231 Body Harness
5. X217 Body Harness to Instrument Panel Harness (1 cavity) (-U2M) X217 Body Harness to Instrument Panel Harness
6. X222 Body Harness COAX to Instrument Panel Harness COAX (1 cavity) (UYR) X222 Body Harness to Instrument Panel Harness (-(B05/B9Q/V4U/W30)) , or X222 Body Harness to Instrument Panel Harness (B05/B9Q/V4U/W30)
7. X221 Body Harness COAX to Instrument Panel Harness COAX (2 cavities) X221 Body Harness to Instrument Panel Harness (-CZ2) , or X221 Body Harness to Instrument Panel Harness (B9Q-CZ2) , or X221 Body Harness to Instrument Panel Harness (B9Q) , or X221 Body Harness to Instrument Panel Harness (CZ2)
8. X220 Instrument Panel Harness to Body Harness (56 cavities) X220 Instrument Panel Harness to Body Harness (-CZ2)
9. J475 Body Harness
10. J321 Body Harness
11.J331 Body Harness
12. J324 Body Harness
13. J327 Body Harness
14. X320 Body Harness to Passenger Seat Cushion Harness (48 cavities) X320 Body Harness to Passenger Seat Cushion Harness
