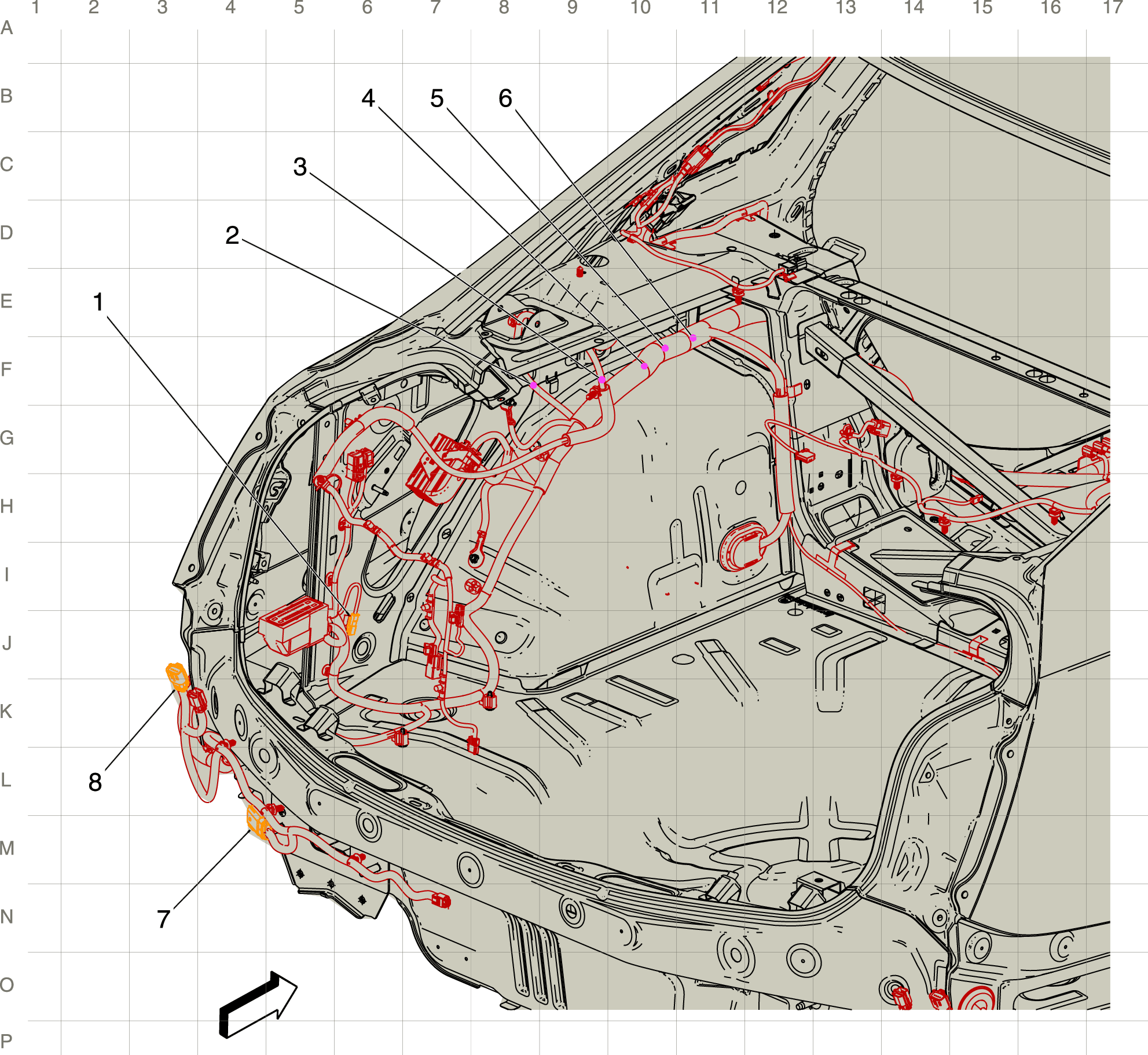

Body Harness Routing - Left Side of the Luggage Compartment (B9Q/V4U)
| Items |
|---|
| 1. X910 Body Harness to Autonet Harness (2 cavities) |
| 2. J475 Body Harness |
| 3. J470 Body Harness |
| 4. J345 Body Harness |
| 5. J326 |
| 6. J346 Body Harness |
| 7. X404 Rear Fascia Harness to Body Harness (12 cavities) X404 Rear Fascia Harness to Body Harness (-UKC/UVZ) |
| 8. X410 Body Harness to Tail Lamp Assembly - Left Harness (4 cavities) X410 Body Harness to Tail Lamp Assembly - Left Harness (-CZ2) , or X410 Body Harness to Tail Lamp Assembly - Left Harness (CZ2) |
