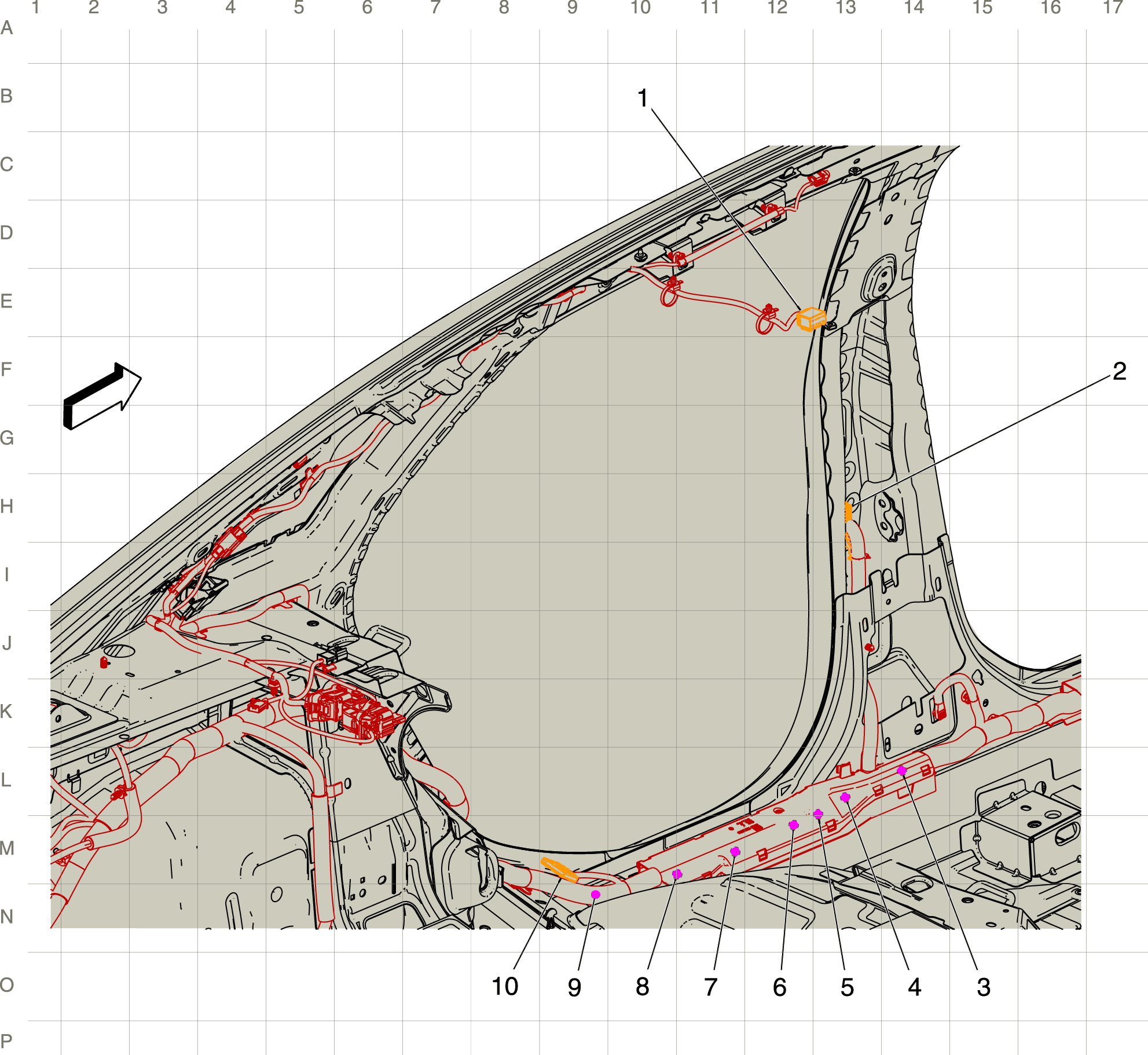

Body Harness Routing - Left Rear of the Passenger Compartment
| Items |
|---|
| 1. X390 Body Harness to Sunroof Harness (10 cavities) (C3U) X390 Body Harness to Sunroof Harness |
| 2. X700 Left Rear Door Harness to Body Harness (20 cavities) X700 Left Rear Door Harness to Body Harness |
| 3. J333 Body Harness |
| 4. J329 Body Harness |
| 5. J330 Body Harness (KA6) |
| 6. J335 Body Harness |
| 7. J337 Body Harness |
| 8. J340 Body Harness |
| 9. J347 Body Harness |
| 10. JX300 Body Harness JX300 Splice Pack |
