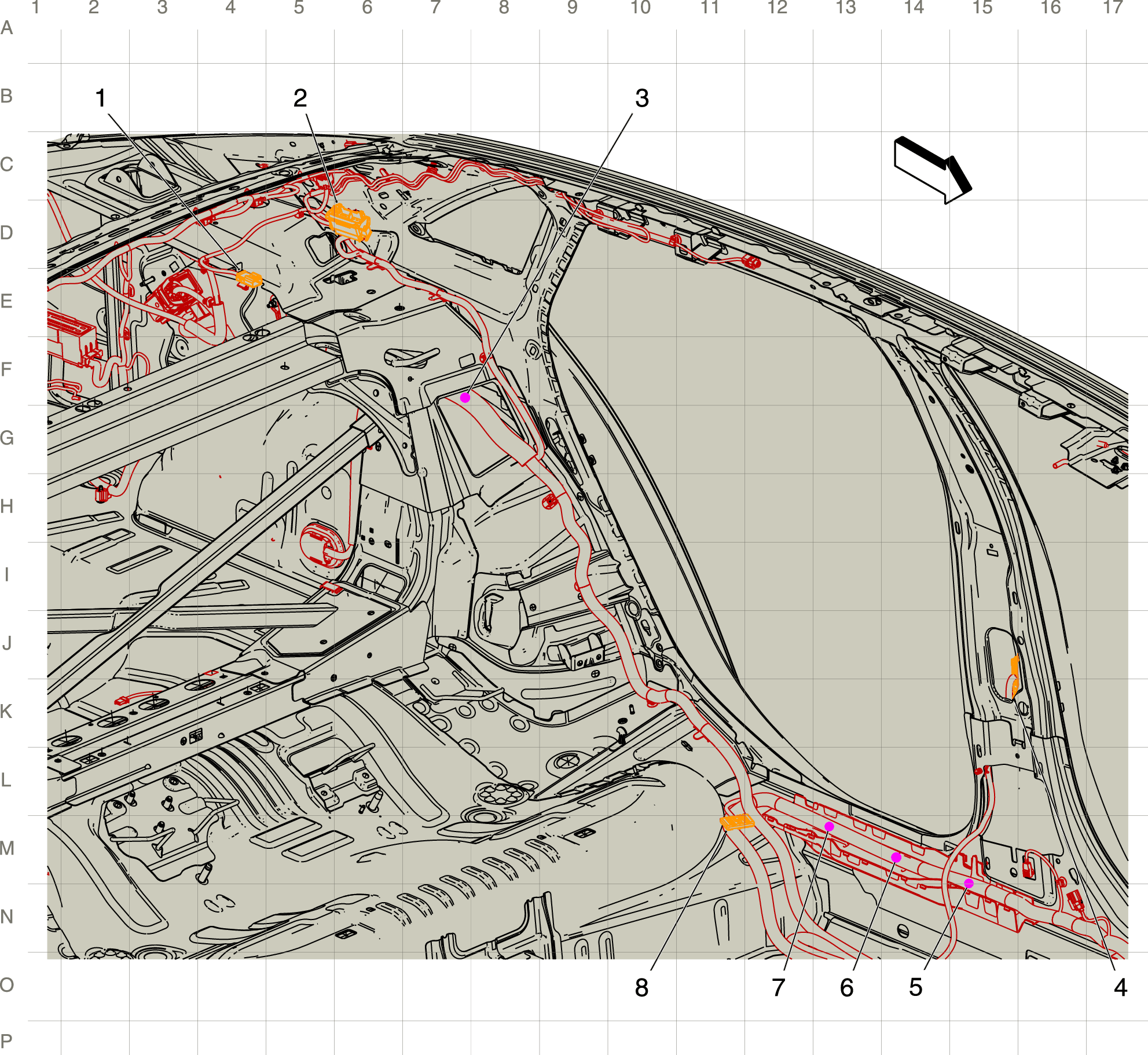

Body Harness Routing - Left Rear of the Passenger Compartment (B9Q/V4U)
| Items |
|---|
| 1. X442 X442 Body Harness to Left Rear Suspension Harness |
| 2. X400 Headliner Harness to Body Harness (40 cavities) X400 Headliner Harness to Body Harness |
| 3. J318 Body Harness |
| 4. X700 Left Rear Door Harness to Body Harness (20 cavities) X700 Left Rear Door Harness to Body Harness |
| 5. J333 Body Harness |
| 6. J330 Body Harness (KA6) |
| 7. J312 Body Harness |
| 8. JX300 Body Harness JX300 Splice Pack |
