Body Harness Routing - Left Rear Wheel Housing

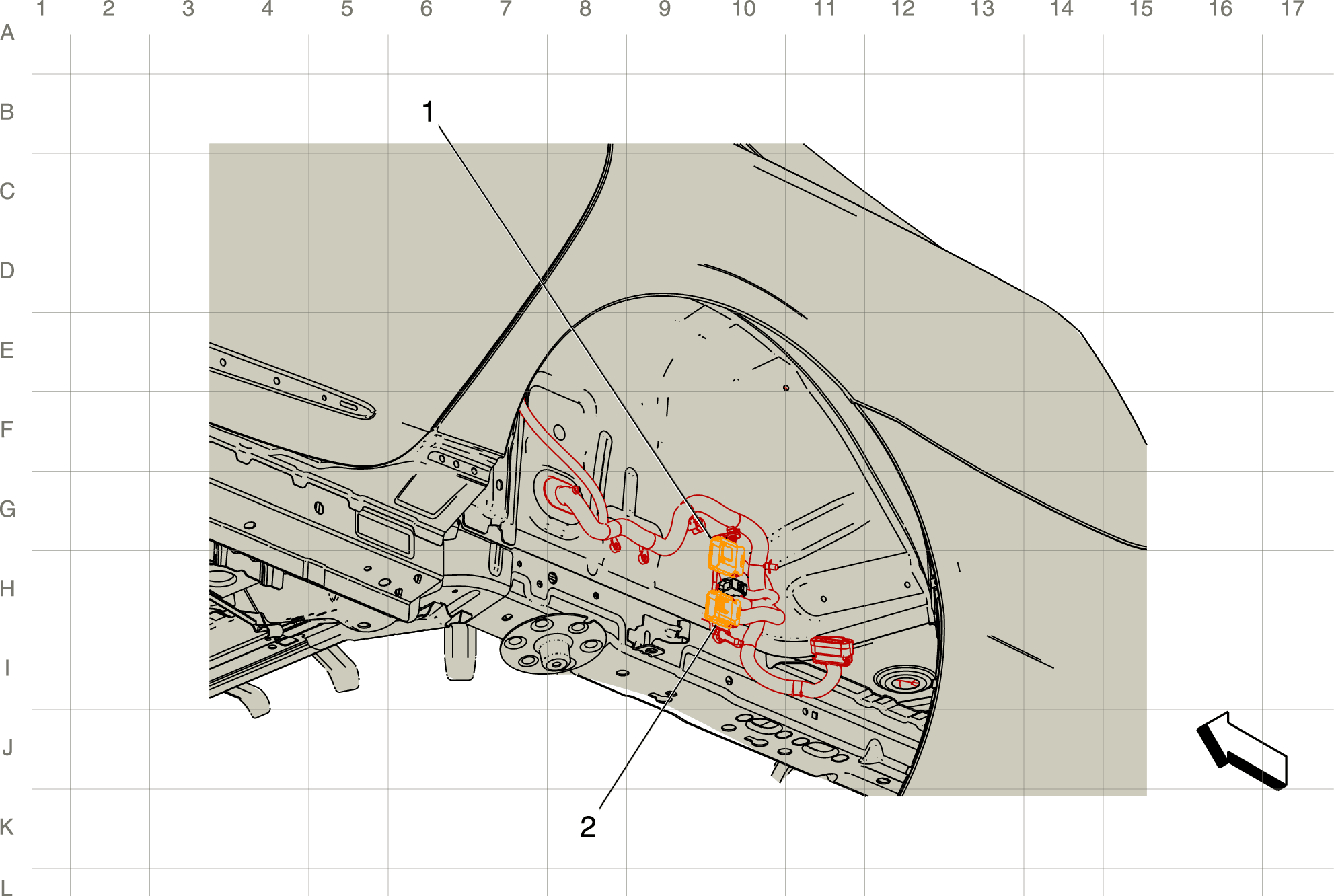

GM2754247Courtesy of GENERAL MOTORS COMPANY
Items
1. X433 Left Rear Suspension Harness to Body Harness (12 cavities) X433 Left Rear Suspension Harness to Body Harness
2. X408 Left Rear Suspension Harness to Body Harness (12 cavities) X408 Left Rear Suspension Harness to Body Harness
