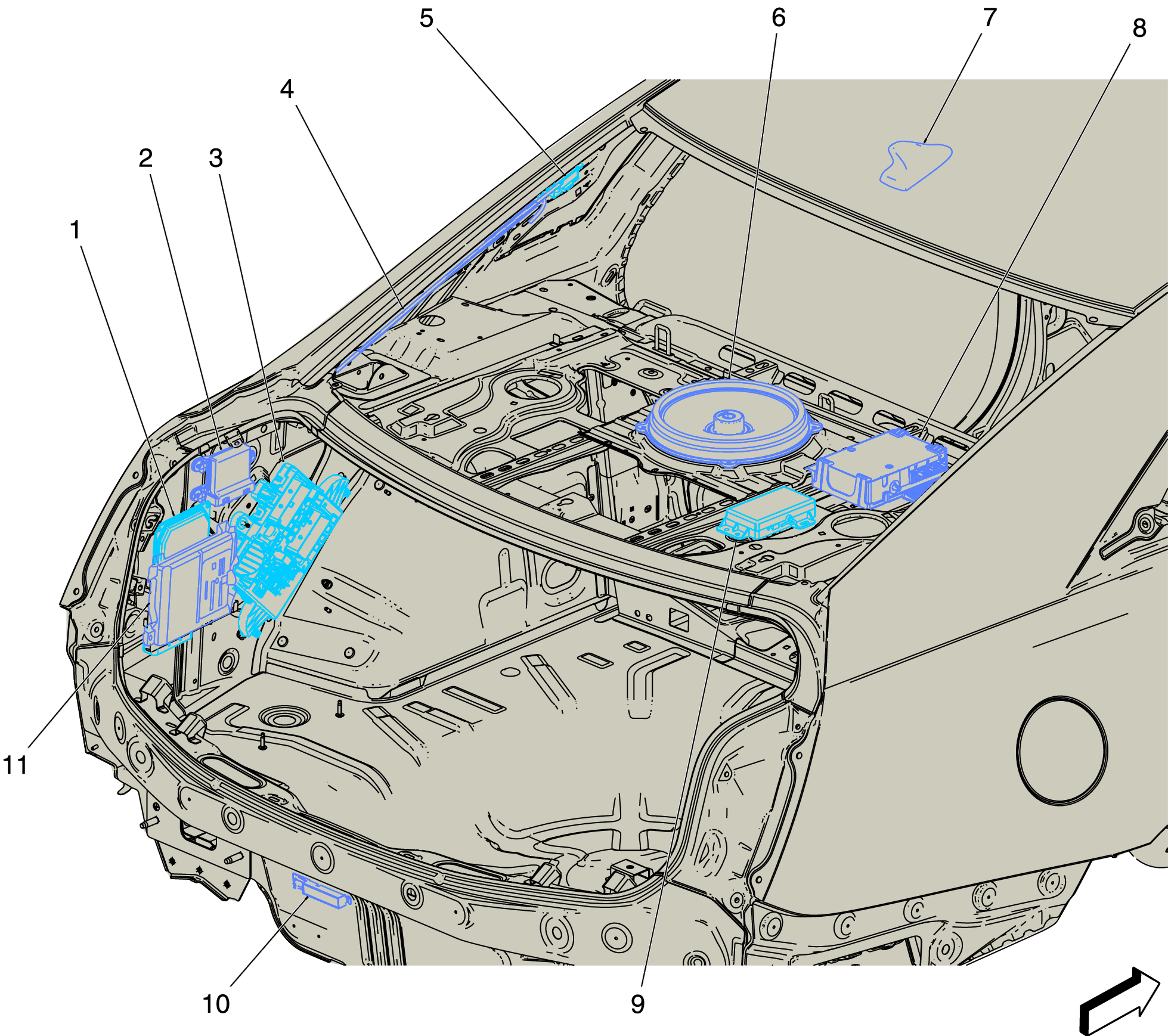

Luggage Compartment/Rear of Vehicle Components (2 of 3)

Courtesy of GENERAL MOTORS COMPANY

Items
1. K19 Suspension Control Module (F55) K19 Suspension Control Module
2. K182 Parking Assist Control Module (UD5/UD7) K182 Parking Assist Control Module X1 K182 Parking Assist Control Module X2 K182 Parking Assist Control Module X3
3. X53A Fuse Block - Rear Body X53A Fuse Block - Rear Body X2 X53A Fuse Block - Rear Body X4
4. R14L Rear Window Defogger Noise Filter - Left R14L Rear Window Defogger Noise Filter - Left
5. T23L Radio Antenna Amplifier - Left T23L Radio Antenna Amplifier - Left (-CZ2-(B05/B9Q/V4U/W30))T23L Radio Antenna Amplifier - Left (B05/B9Q/V4U/W30)T23L Radio Antenna Amplifier - Left (CZ2)
6. P19AC Speaker - Subwoofer (UQS) P19AC Speaker - Subwoofer
7. T4G Cellular Phone, Navigation, and Digital Radio Antenna (U2K) T4G Cellular Phone, Navigation, and Digital Radio Antenna X1 (-(CZ2/B05/B9Q/V4U/W30))T4G Cellular Phone, Navigation, and Digital Radio Antenna X1 (B9Q-CZ2)T4G Cellular Phone, Navigation, and Digital Radio Antenna X1 (CZ2)T4G Cellular Phone, Navigation, and Digital Radio Antenna X2 ((B05/B9Q/V4U/W30))T4G Cellular Phone, Navigation, and Digital Radio Antenna X2 (-(CZ2/B05/B9Q/V4U/W30))T4G Cellular Phone, Navigation, and Digital Radio Antenna X3 (-CZ2+B9Q)
8. K73 Telematics Communication Interface Control Module (UE1) K73 Telematics Communication Interface Control Module X1 K73 Telematics Communication Interface Control Module X5 K73 Telematics Communication Interface Control Module X7
9. C3 Telematics Communication Interface Control Module Battery
10. T10G Keyless Entry Antenna - Rear Fascia T10G Keyless Entry Antenna - Rear Fascia
11. K124 Active Safety Control Module (UGN/UVZ) K124 Active Safety Control Module X1 K124 Active Safety Control Module X2
