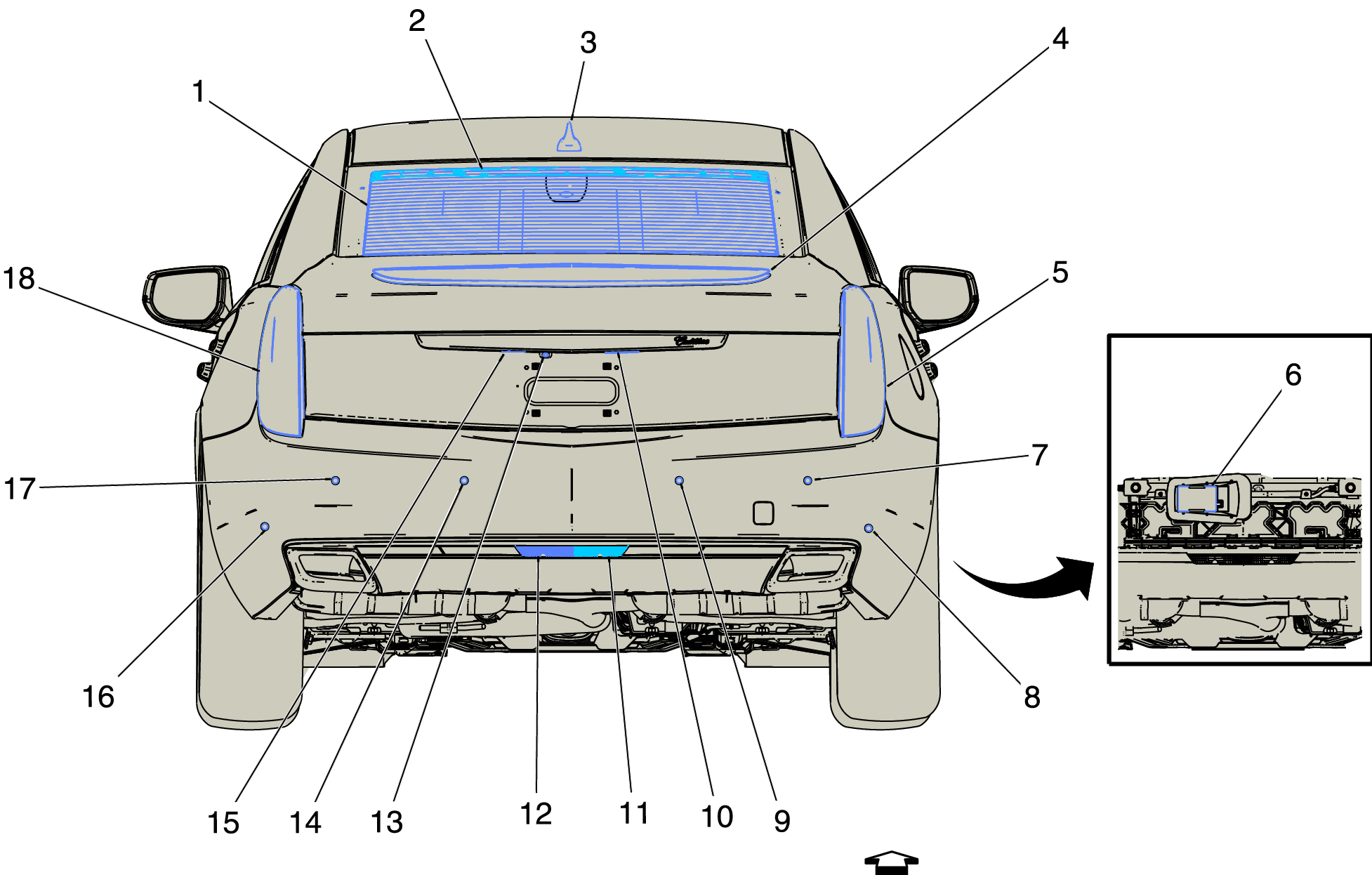

Luggage Compartment/Rear of Vehicle Components (1 of 3)
 Courtesy of GENERAL MOTORS COMPANY
|
Luggage Compartment/Rear of Vehicle Components (1 of 3)
| Items |
| 1. E18 Rear Defogger Grid E18 Rear Defogger Grid X1E18 Rear Defogger Grid X2 |
| 2. T2SR Antenna - Rear Window T2SR Antenna - Rear Window X1T2SR Antenna - Rear Window X2 |
| 3. T4G Cellular Phone, Navigation, and Digital Radio Antenna (U2K) T4G Cellular Phone, Navigation, and Digital Radio Antenna X1 (-(CZ2/B05/B9Q/V4U/W30))T4G Cellular Phone, Navigation, and Digital Radio Antenna X1 (B9Q-CZ2)T4G Cellular Phone, Navigation, and Digital Radio Antenna X1 (CZ2)T4G Cellular Phone, Navigation, and Digital Radio Antenna X2 ((B05/B9Q/V4U/W30))T4G Cellular Phone, Navigation, and Digital Radio Antenna X2 (-(CZ2/B05/B9Q/V4U/W30))T4G Cellular Phone, Navigation, and Digital Radio Antenna X3 (-CZ2+B9Q) |
| 4. E6 Center High Mounted Stop Lamp E6 Center High Mounted Stop Lamp |
| 5. E42R Tail Lamp Assembly - Right E42R Tail Lamp Assembly - Right (-CZ2)E42R Tail Lamp Assembly - Right (CZ2) |
| 6. B233R Radar Sensor Module - Short Range Rear |
| 7. B306H Parking Assist Sensor - Rear Right Outer (UD5/UD7) B306H Parking Assist Sensor - Rear Right Outer |
| 8. B218R Side Object Sensor Module - Right (UFT) B218R Side Object Sensor Module - Right |
| 9. B306G Parking Assist Sensor - Rear Right Middle (UD5/UD7) B306G Parking Assist Sensor - Rear Right Middle |
| 10. E7R License Plate Lamp - Right E7R License Plate Lamp - Right (-CZ2)E7R License Plate Lamp - Right (CZ2) |
| 11. E5B Backup Lamp - Right E5B Backup Lamp - Right |
| 12. E5A Backup Lamp - Left E5A Backup Lamp - Left |
| 13. B87 Rearview Camera (UVC) B87 Rearview Camera (UVC+B9Q)B87 Rearview Camera (UVC-B9Q)B87 Rearview Camera (UVH) |
| 14. B306F Parking Assist Sensor - Rear Left Middle (UD5/UD7) B306F Parking Assist Sensor - Rear Left Middle |
| 15. E7L License Plate Lamp - Left E7L License Plate Lamp - Left (-CZ2)E7L License Plate Lamp - Left (CZ2) |
| 16. B218L Side Object Sensor Module - Left (UFT) B218L Side Object Sensor Module - Left |
| 17. B306E Parking Assist Sensor - Rear Left Outer (UD5/UD7) B306E Parking Assist Sensor - Rear Left Outer |
| 18. E42L Tail Lamp Assembly - Left E42L Tail Lamp Assembly - Left |
