Luggage Compartment and Deck Lid Components

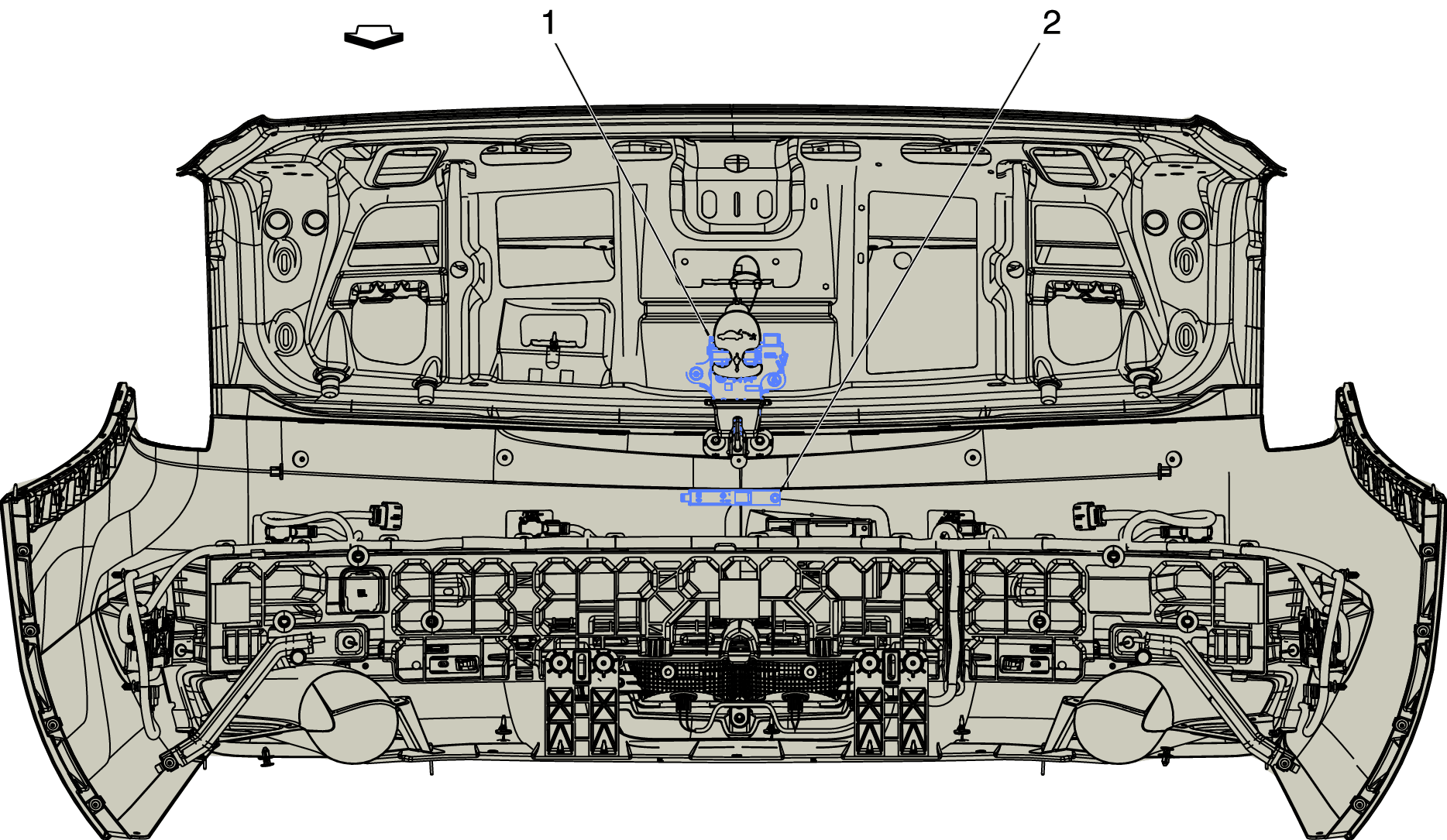

GM3921561Courtesy of GENERAL MOTORS COMPANY
Luggage Compartment and Deck Lid Components

Items
1. M40 Rear Compartment Lid Latch M40 Rear Compartment Lid Latch
2. T10G Keyless Entry Antenna - Rear Fascia T10G Keyless Entry Antenna - Rear Fascia
