Luggage Compartment (V4U)

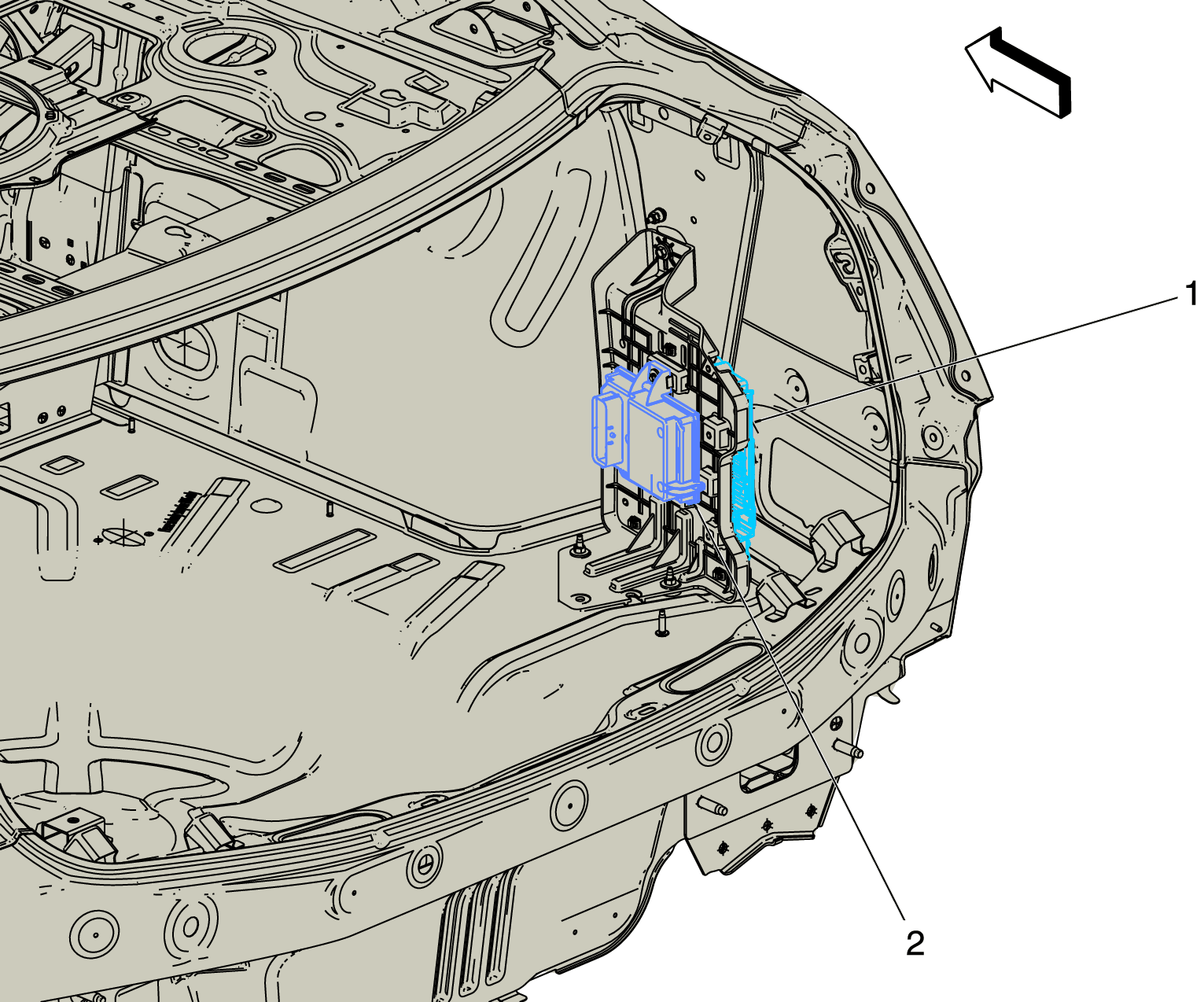

GM3535642Courtesy of GENERAL MOTORS COMPANY
Luggage Compartment (V4U)

Items
1. T3 Audio Amplifier (UQA/UQG/UQS) T3 Audio Amplifier X1T3 Audio Amplifier X2T3 Audio Amplifier X3T3 Audio Amplifier X4
2. K38 Chassis Control Module K38 Ultrasonic Intrusion Sensor Module
