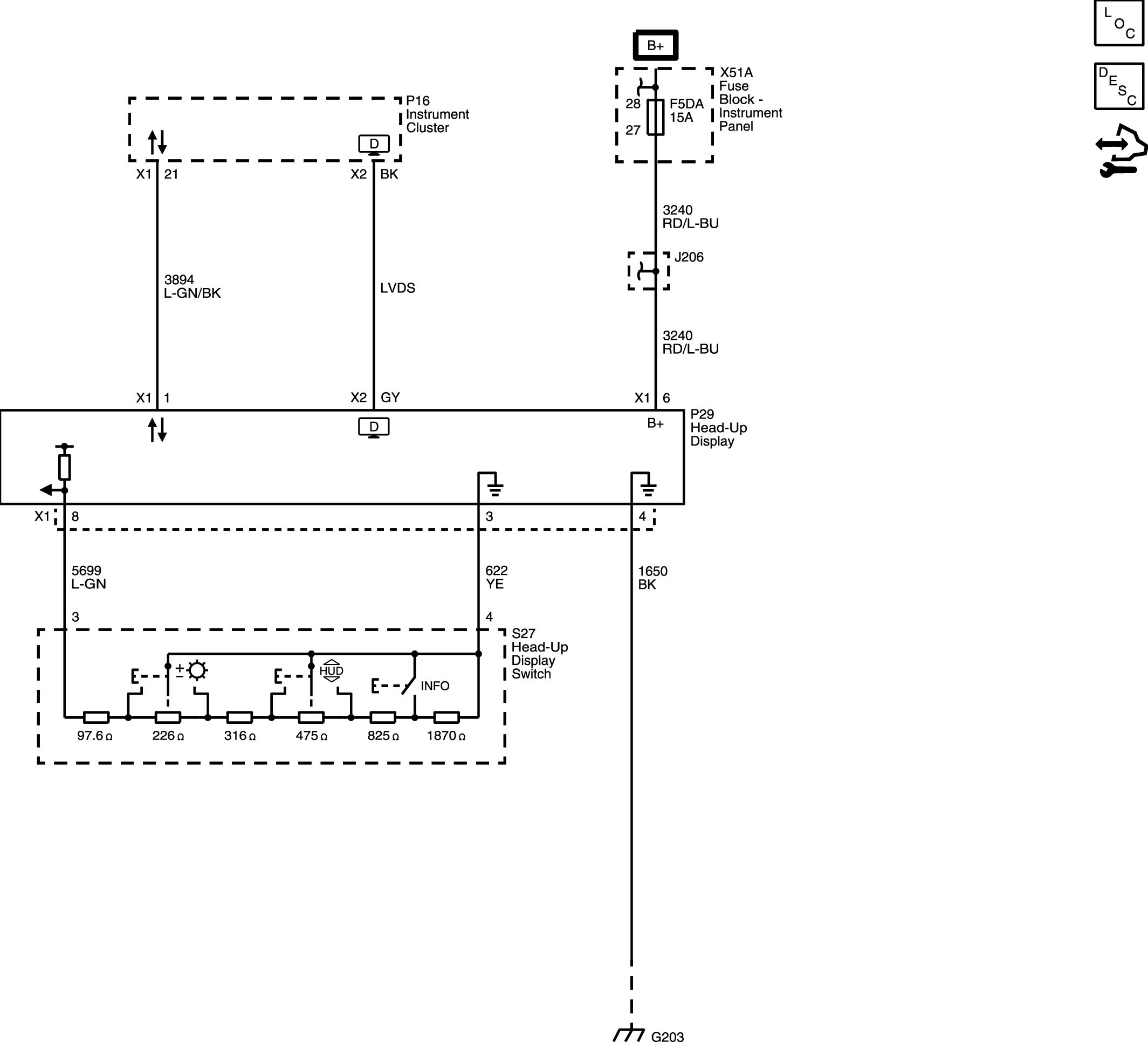

Home >> Cadillac >> 2019 >> XTS Base >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Displays And Gauges >> Schematic and Wiring Diagrams >> Head-Up Display Wiring Schematics >> Head-Up Display
