Liftgate Harness Routing

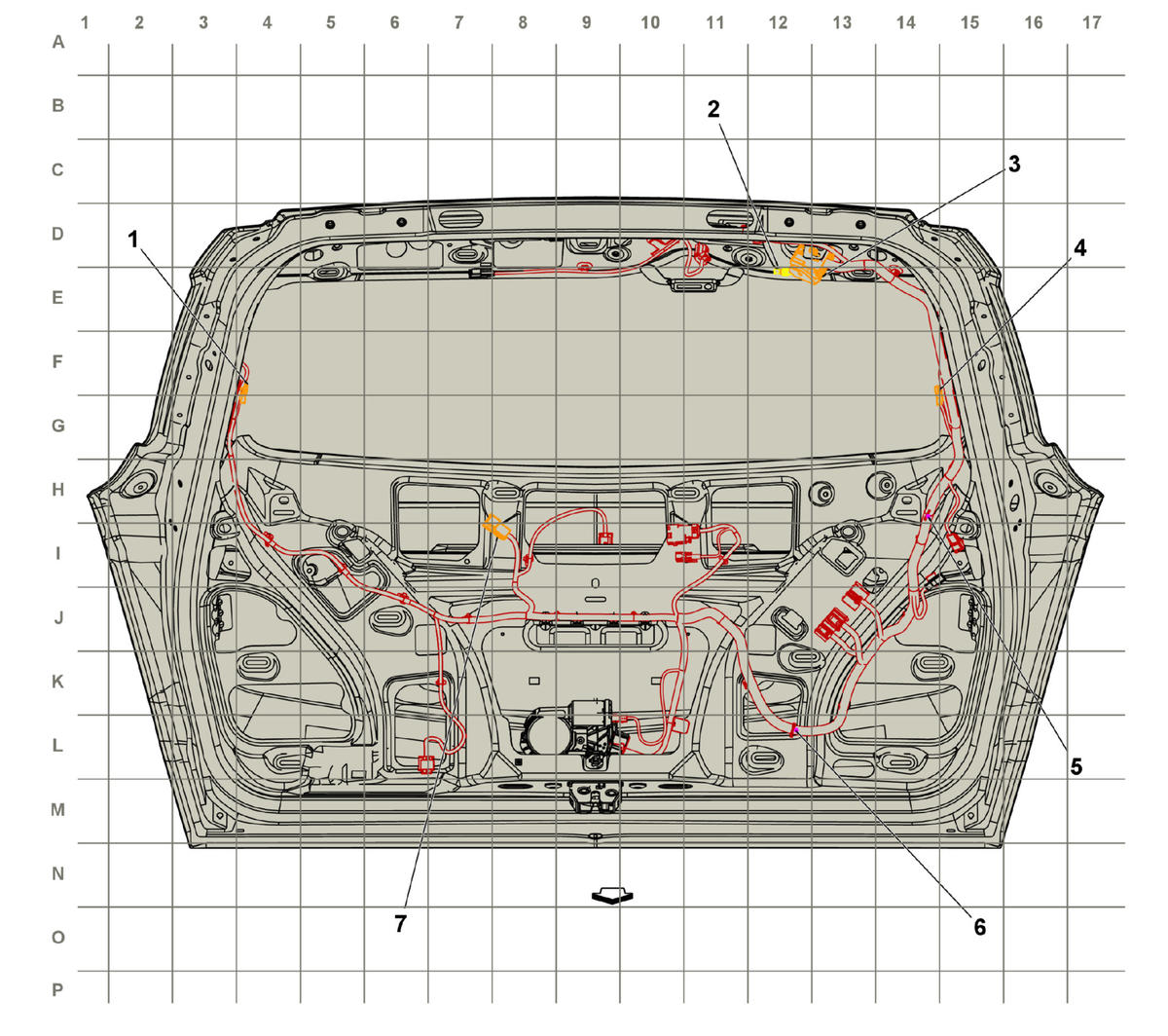

GM5422067Courtesy of GENERAL MOTORS COMPANY
Items
1. X902 Right Liftgate Object Sensor Jumper Harness to Liftgate Harness X902 Right Liftgate Object Sensor Jumper Harness to Liftgate Harness
2. X906 Body Harness to Liftgate Harness (DRZ) X906 Body Harness to Liftgate Harness (DRZ)
3. X900 Body Harness to Liftgate Harness X900 Body Harness to Liftgate Harness
4. X904 Left Liftgate Object Sensor Jumper Harness to Liftgate Harness X904 Left Liftgate Object Sensor Jumper Harness to Liftgate Harness
5. J900 Liftgate Harness
6. J901 Liftgate Harness
7. X901 License Lamp Harness to Liftgate Harness X901 License Lamp Harness to Liftgate Harness
