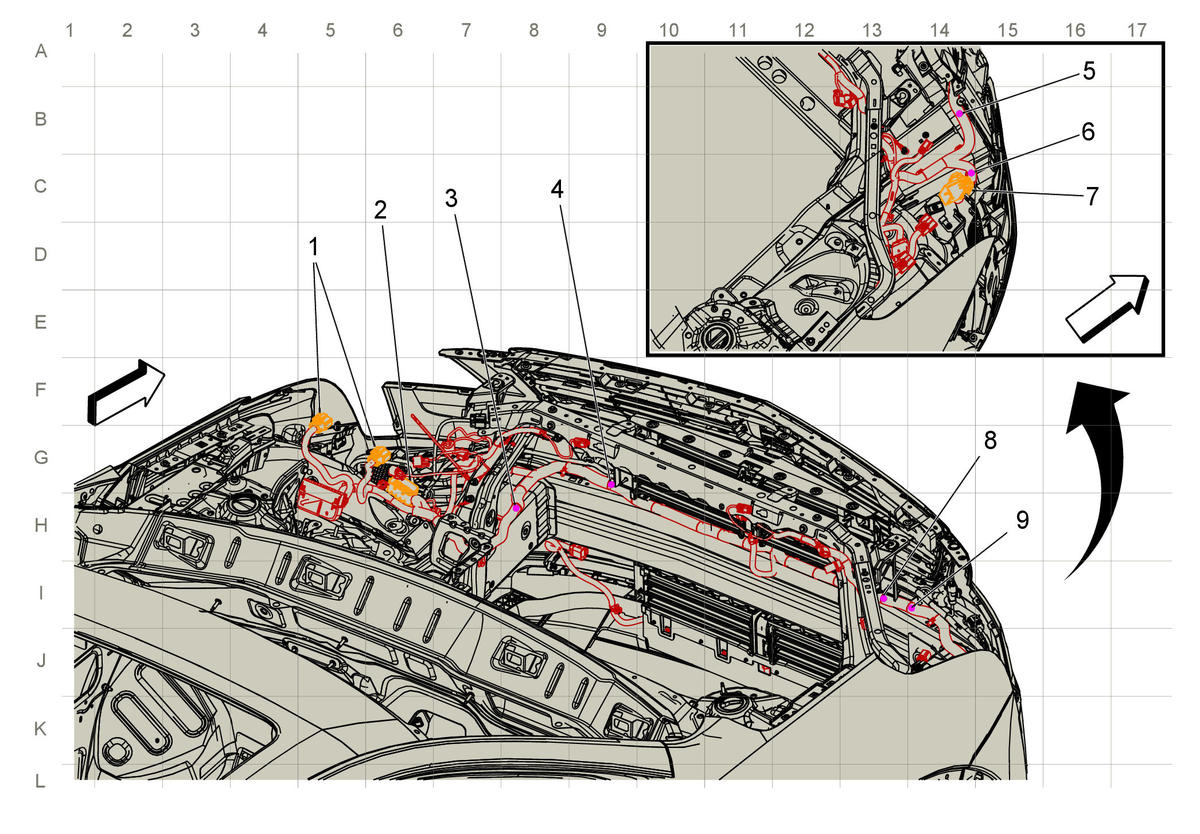

Forward Lamp Harness Routing (1 of 2)
| Items |
|---|
| 1. X110 Forward Lamp Harness to Left Headlamp Harness X110 Forward Lamp Harness to Left Headlamp Harness |
| 2. X101 Body Harness to Forward Lamp Harness X101 Body Harness to Forward Lamp Harness |
| 3. J100 Forward Lamp Harness |
| 4. J101 Forward Lamp Harness |
| 5. J106 Forward Lamp Harness |
| 6. J108 Forward Lamp Harness (UVH) |
| 7. X102 Front Fascia Harness to Forward Lamp Harness X102 Front Fascia Harness to Forward Lamp Harness |
| 8. J104 Forward Lamp Harness (UGN) |
| 9. J105 Forward Lamp Harness (T4A) |
