Body Harness Routing - Right Front of Passenger Compartment

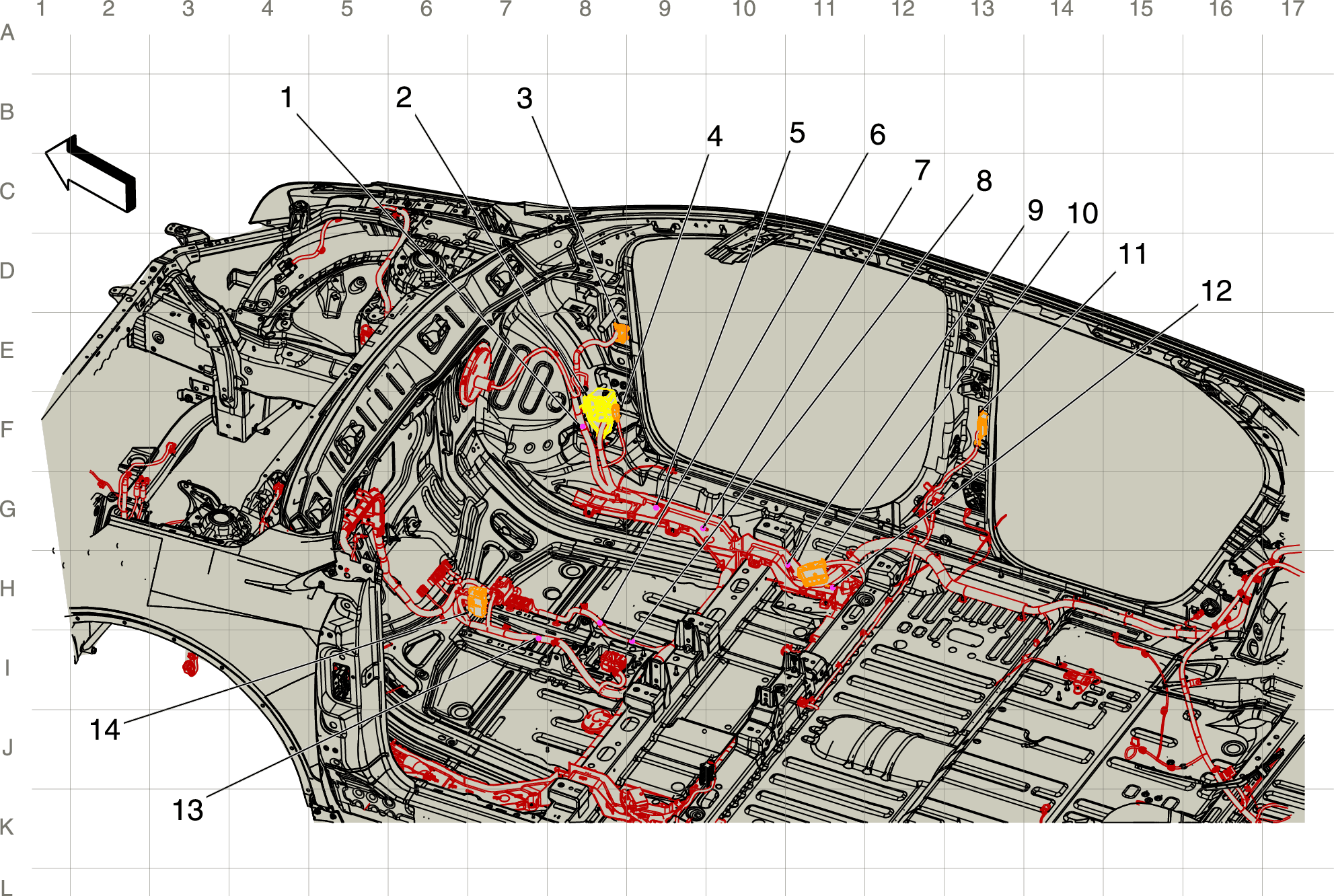

GM5199045Courtesy of GENERAL MOTORS COMPANY
Items
1. X201 Instrument Panel Harness to Body Harness X201 Instrument Panel Harness to Body Harness
2. J200 Body Harness
3. J305 Body Harness
4. J201 Body Harness
5. J371 Body
6. J315 Body Harness
7. X302 Passenger Seat Harness to Body Harness X302 Passenger Seat Harness to Body Harness
