Body Harness Routing - Left Front of Passenger Compartment

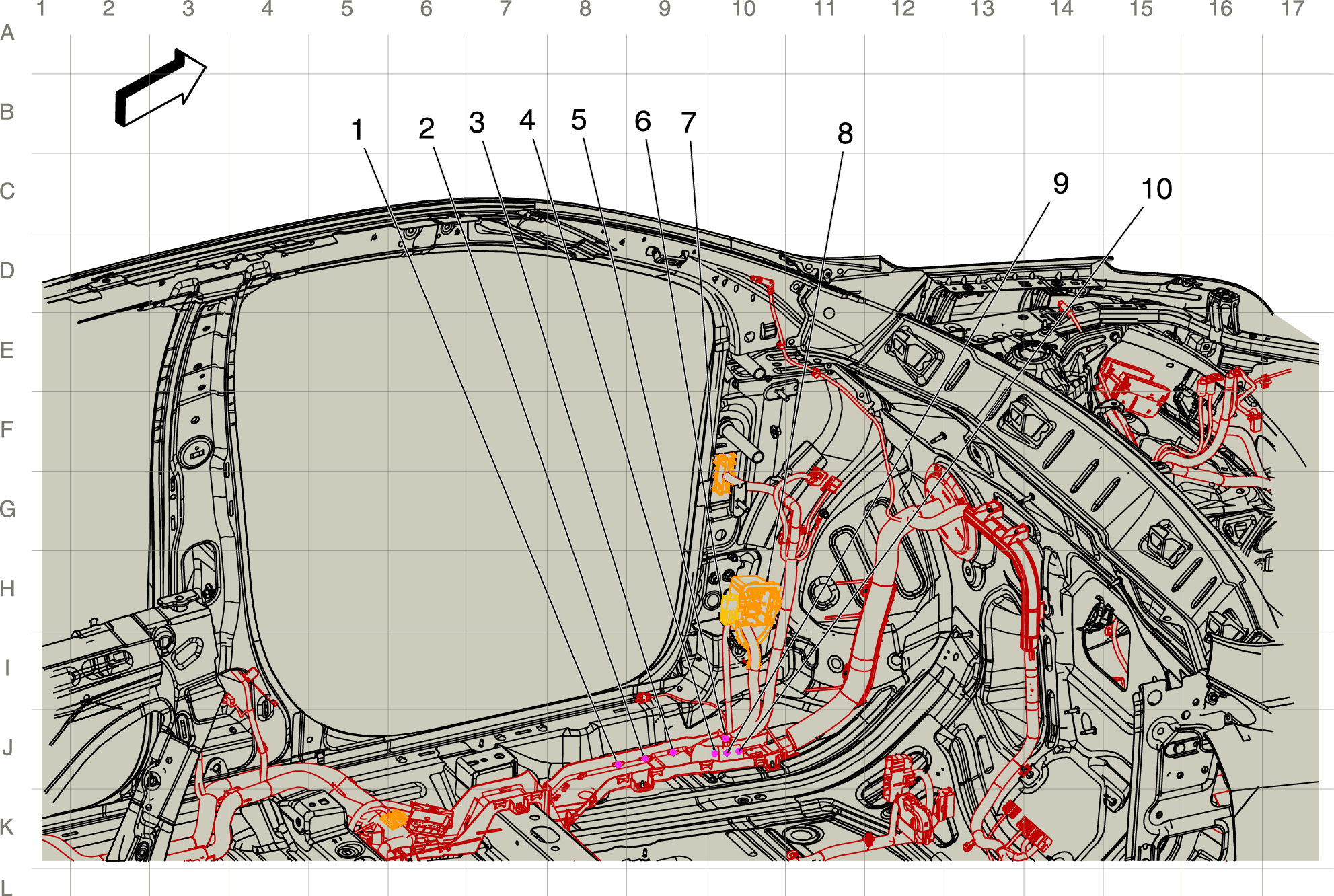

GM5227577Courtesy of GENERAL MOTORS COMPANY
Items
1. J304 Body Harness
2. J303 Body Harness
3. J302 Body Harness
4. X235 Instrument Panel Harness to Body Harness X235 Instrument Panel Harness to Body Harness
5. X500 Driver Door Harness to Body Harness X500 Driver Door Harness to Body Harness
6. X200 Instrument Panel Harness to Body Harness X200 Instrument Panel Harness to Body Harness
7. J301 Body Harness
8. J300 Body Harness (U4G)
