Body Harness Routing - Front Center of Passenger Compartment

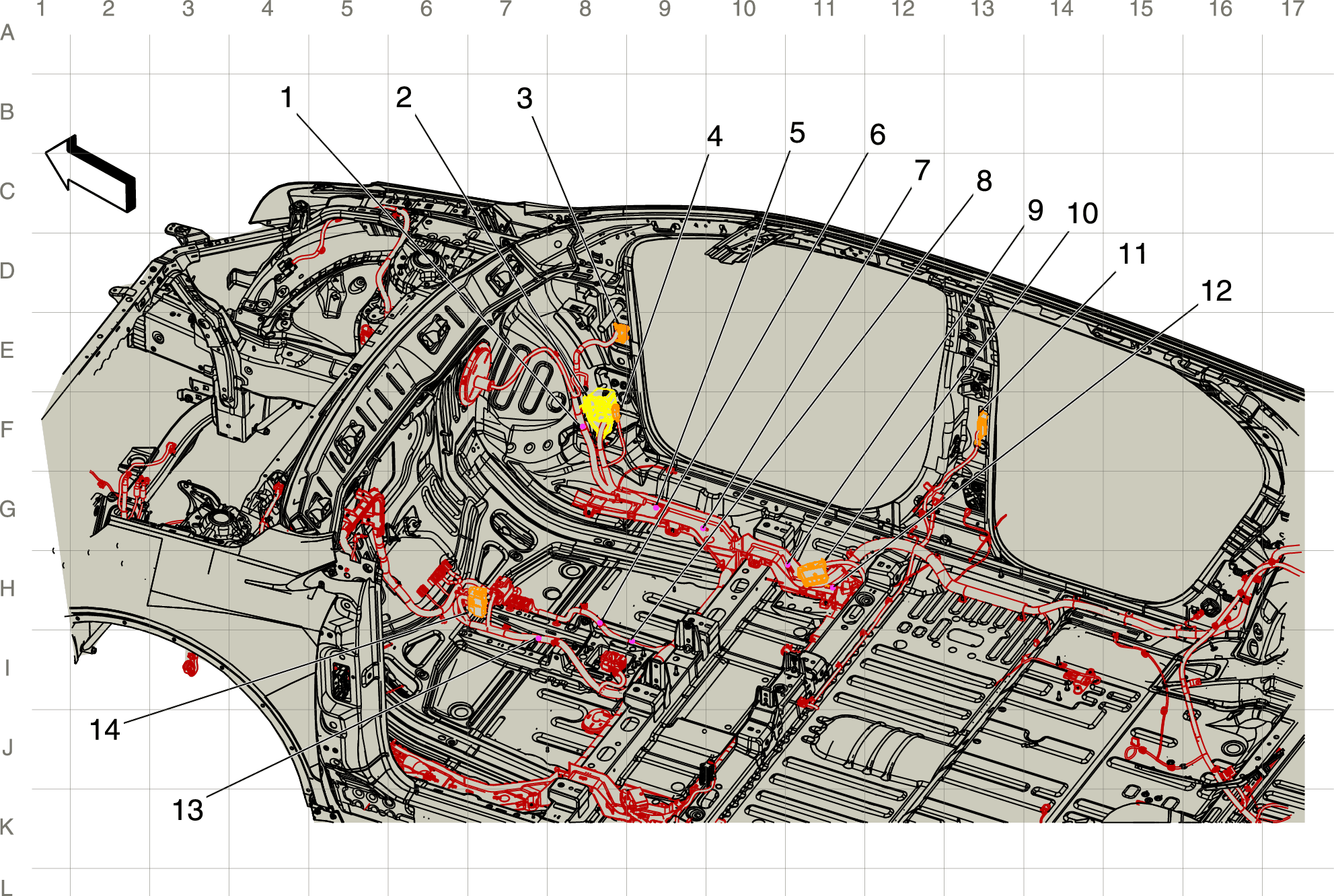

GM5199044Courtesy of GENERAL MOTORS COMPANY
Items
1. J257 Body Harness
2. X231 Floor Console Harness to Body Harness X231 Floor Console Harness to Body Harness
3..J203 Body Harness
4. J256 Body Harness
5. J348 Body Harness
6. J331 Body Harness
7. J329 Body Harness
