Body Harness Routing - Center of Passenger Compartment

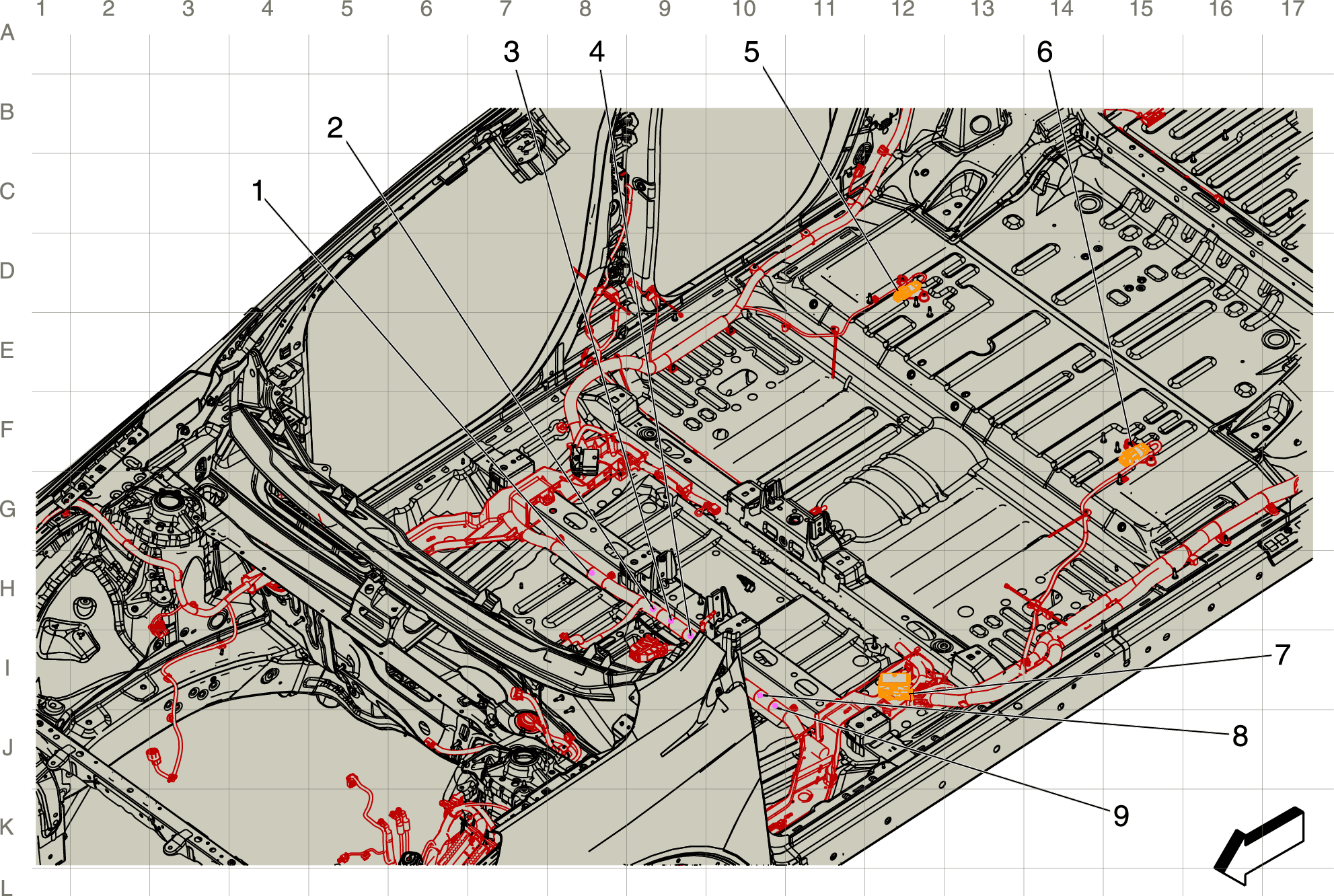

GM5205170Courtesy of GENERAL MOTORS COMPANY
Items
1. J321 Body Harness
2. J314 Body Harness
3. J313 Body Harness
4. J312 Body Harness
5. X304 Right Rear Seat Harness to Body Harness (KA6) X304 Right Rear Seat Harness to Body Harness (KA6)
6. X303 Left Rear Seat Harness to Body Harness (KA6) X303 Left Rear Seat Harness to Body Harness
7. X301 Driver Seat Harness to Body Harness X301 Driver Seat Harness to Body Harness
8. J310 Body Harness
9. J309 Body Harness
