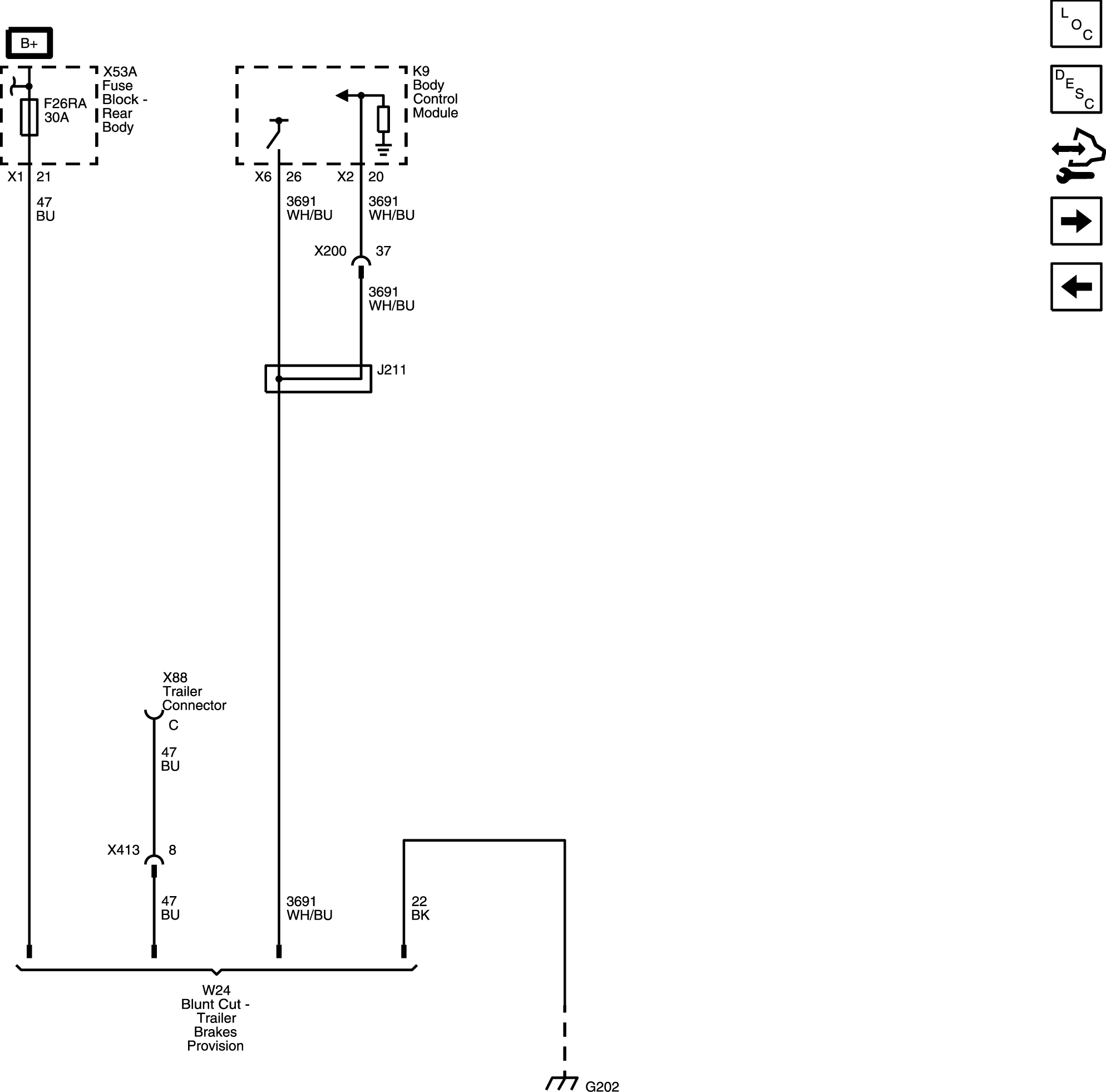

7-Pin Trailer Connector - Pin C and Trailer Brake Provisions (V92)

GM4909891

Courtesy of GENERAL MOTORS COMPANY
