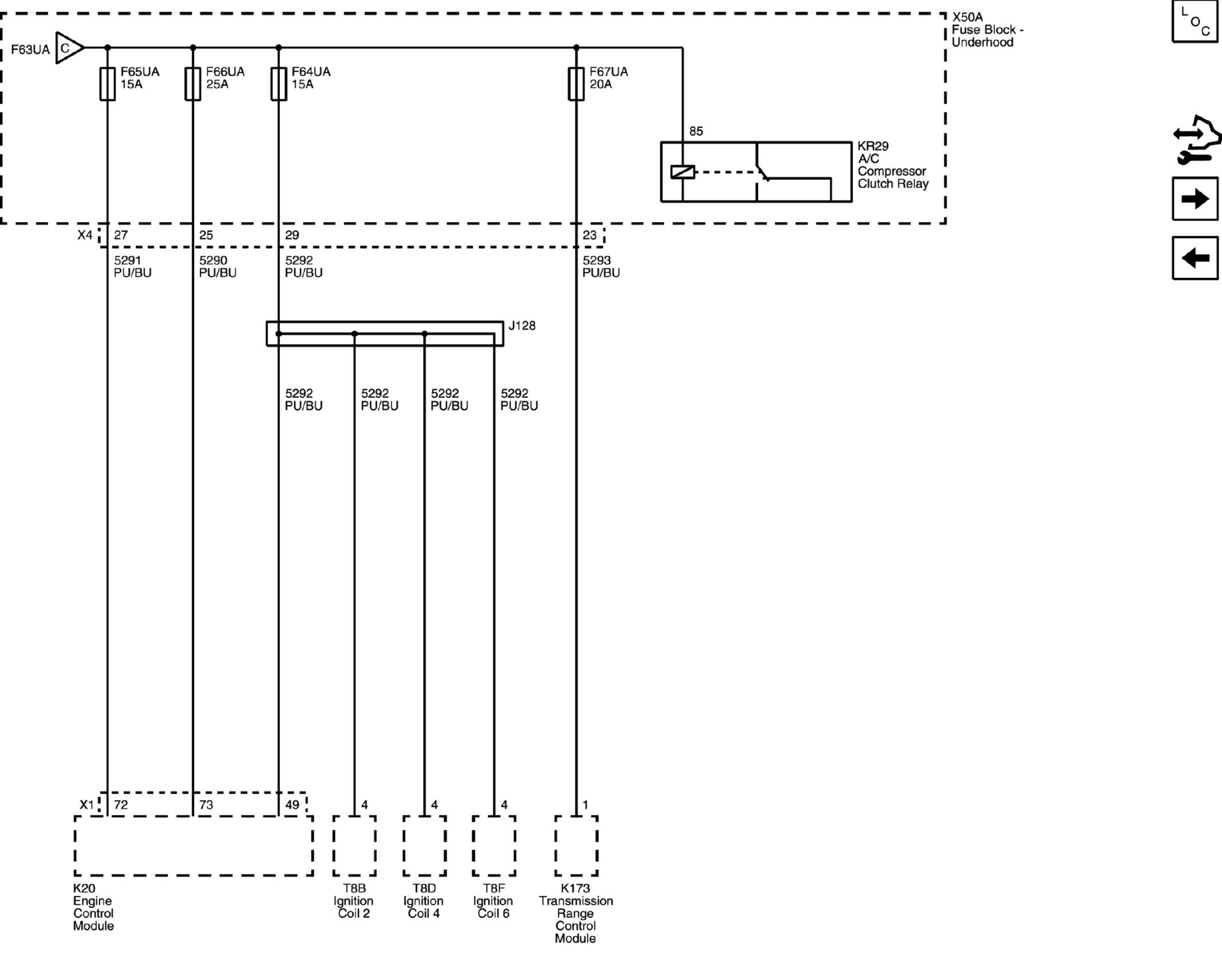

Home >> Cadillac >> 2019 >> XT5 Base, 4WD >> Repair and Diagnosis >> Electrical >> Motors, Switches, Relays >> Wiring Systems And Power Management - Schematic Wiring Diagrams And Wiring Harness Routing Diagrams >> Schematic Wiring Diagrams & And Wiring Harness Routing >> Schematic Wiring Diagrams >> Power Distribution Wiring Schematics >> F64UA, F65UA, F66UA, and F67UA Fuses
