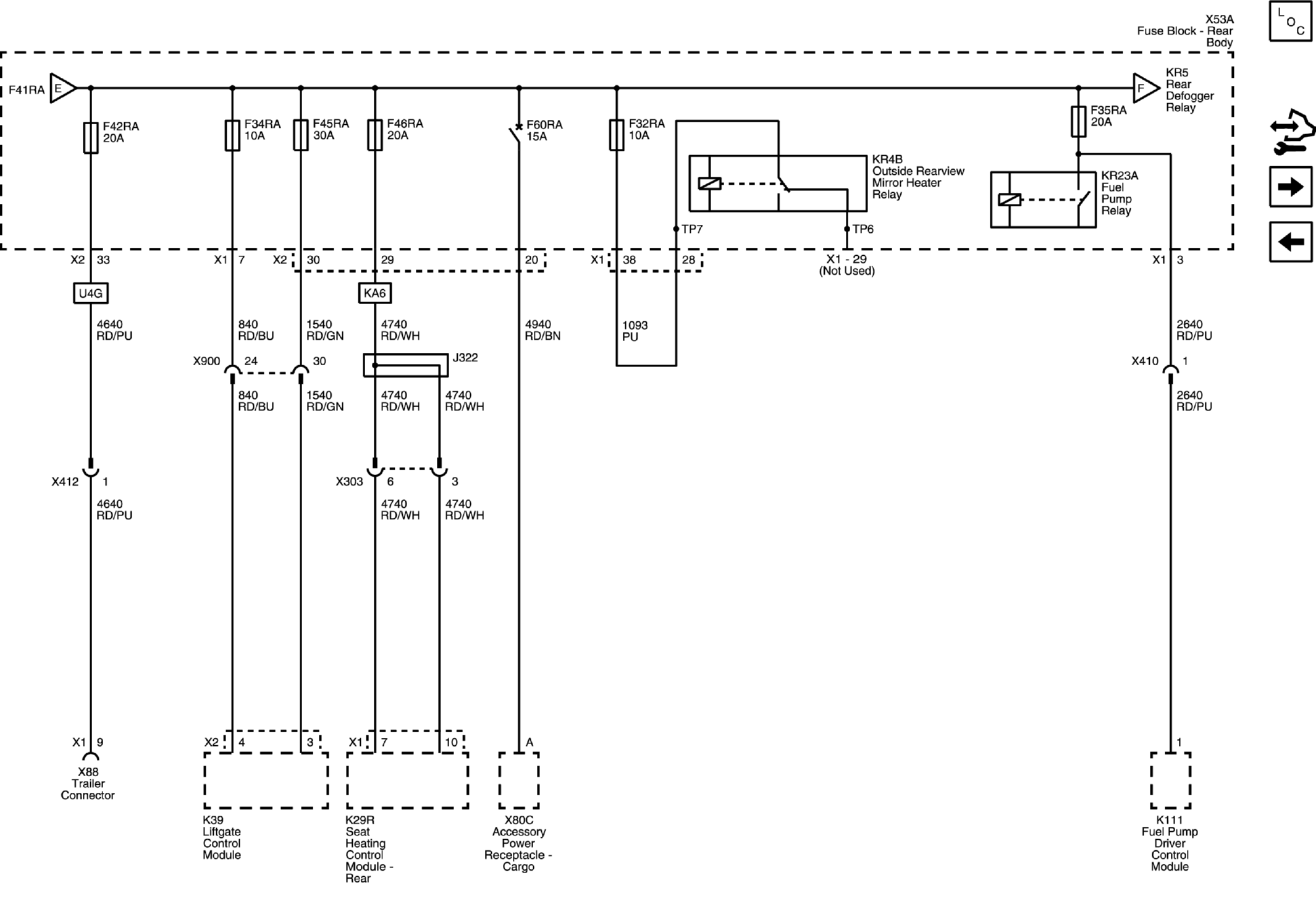

F32RA, F34RA, F35RA, F39RA, F42RA, F45RA, F46RA, and F60RA Fuses

GM4909295Courtesy of GENERAL MOTORS COMPANY
