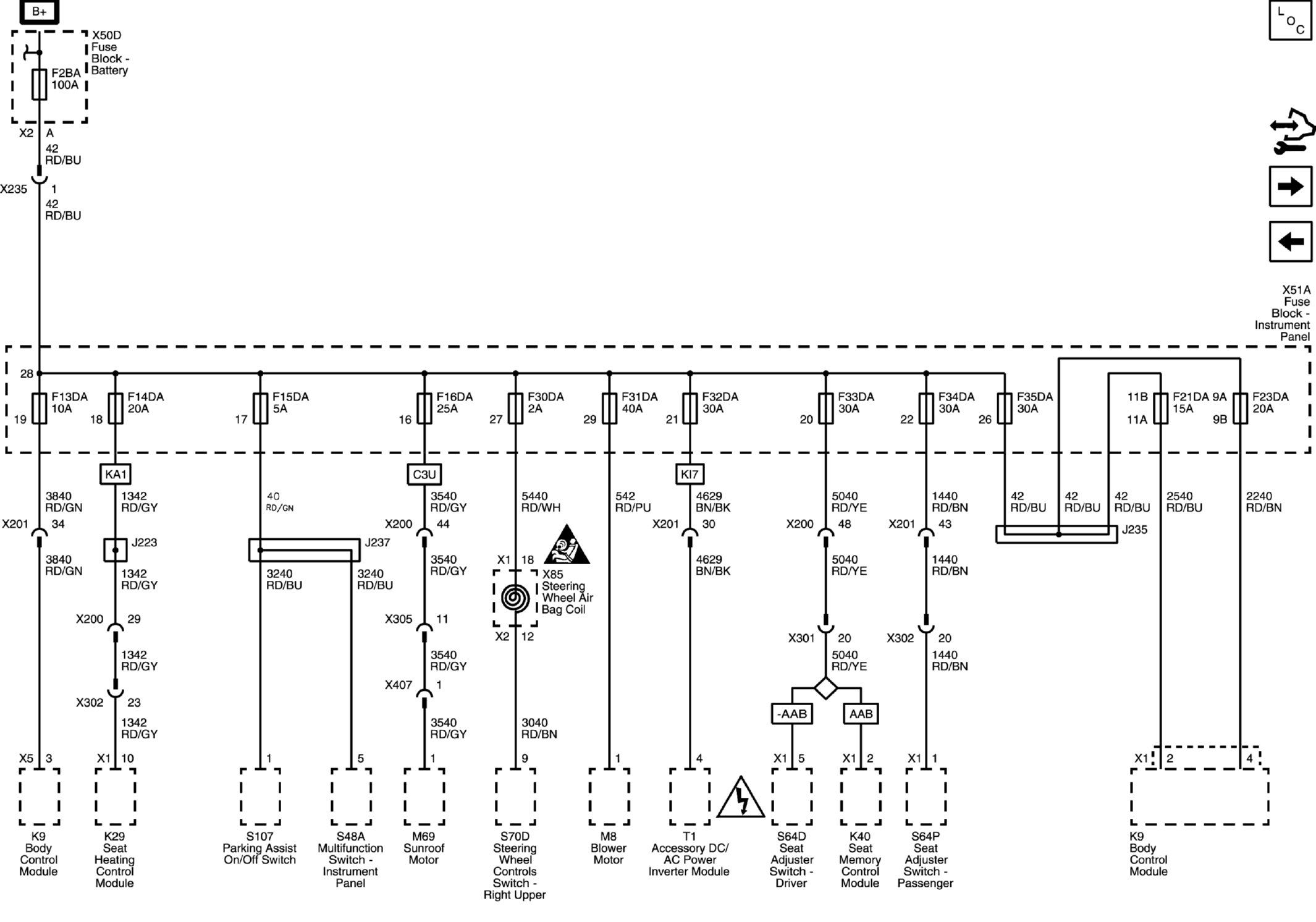

F2BA, F13DA, F14DA, F15DA, F16DA, F21DA, F23DA, F30DA, F31DA, F32DA, F33DA, F34DA, and F35DA Fuses

GM4909289Courtesy of GENERAL MOTORS COMPANY
