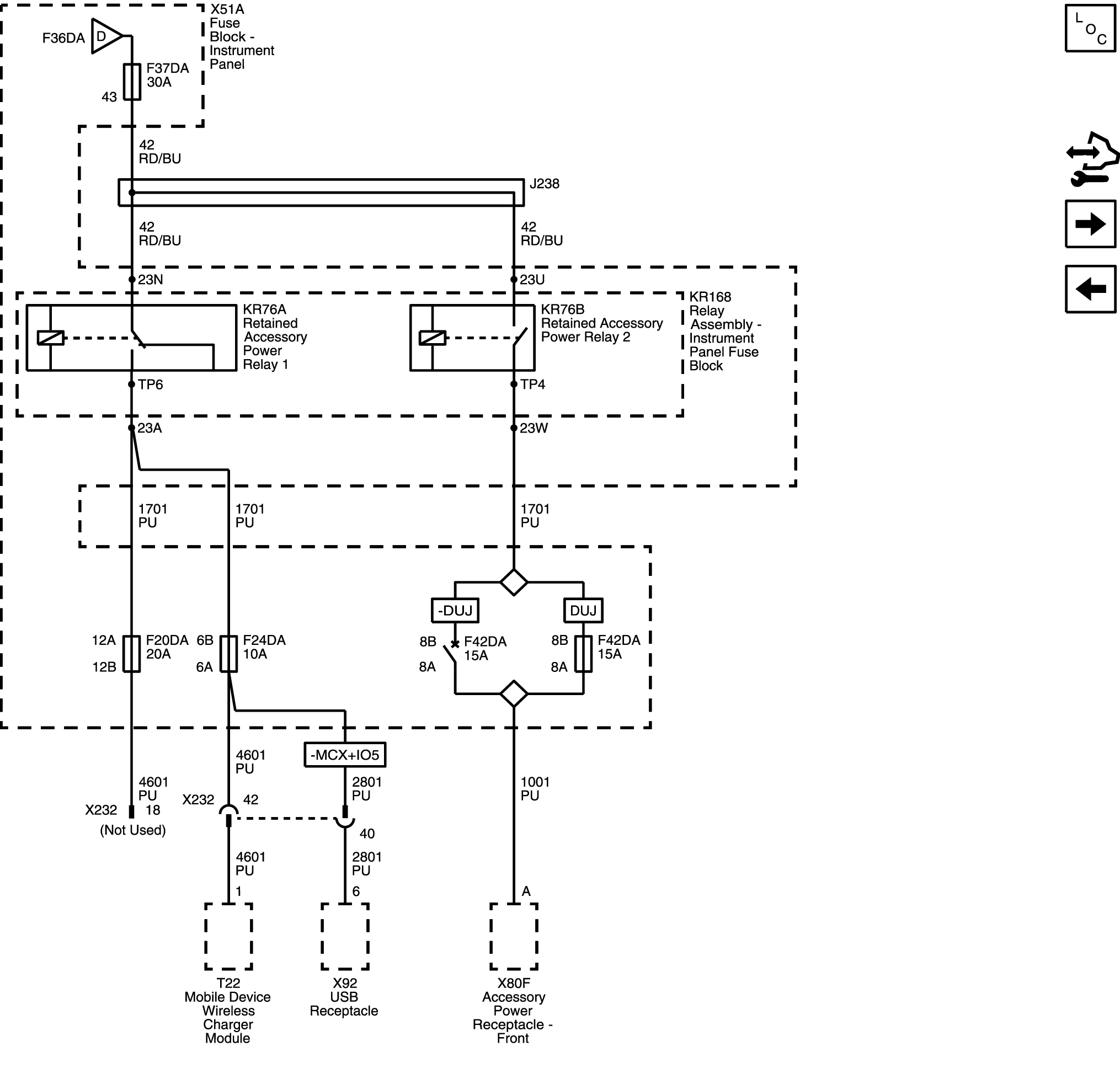

F20DA, F24DA, F37DA, F42DA (-DUJ) Fuses, and F42DA (DUJ) Circuit Breaker

GM4909292

Courtesy of GENERAL MOTORS COMPANY
