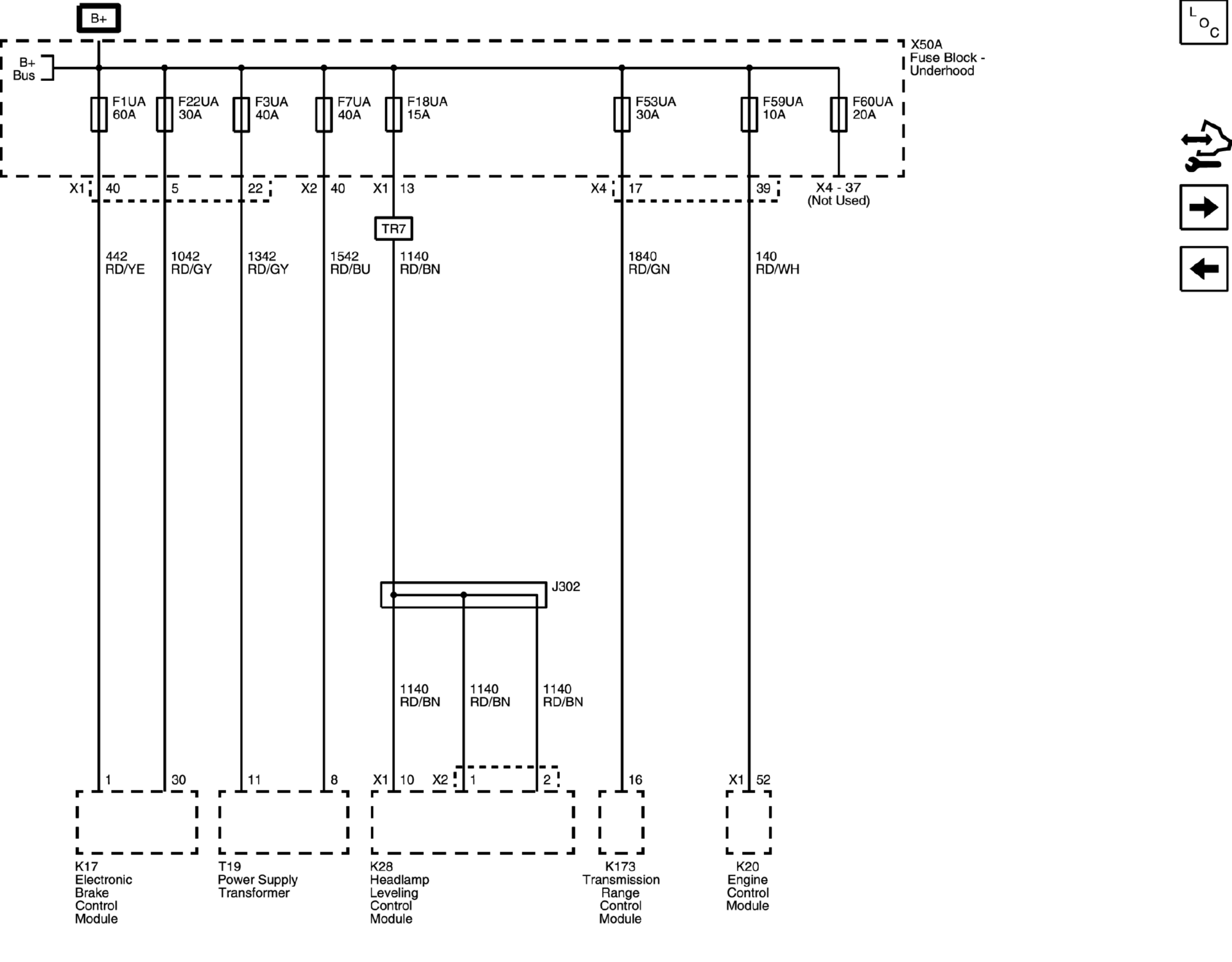

F1UA, F3UA, F7UA, F18UA, F22UA, F53UA, F59UA, and F60UA Fuses

GM4909281

Courtesy of GENERAL MOTORS COMPANY
