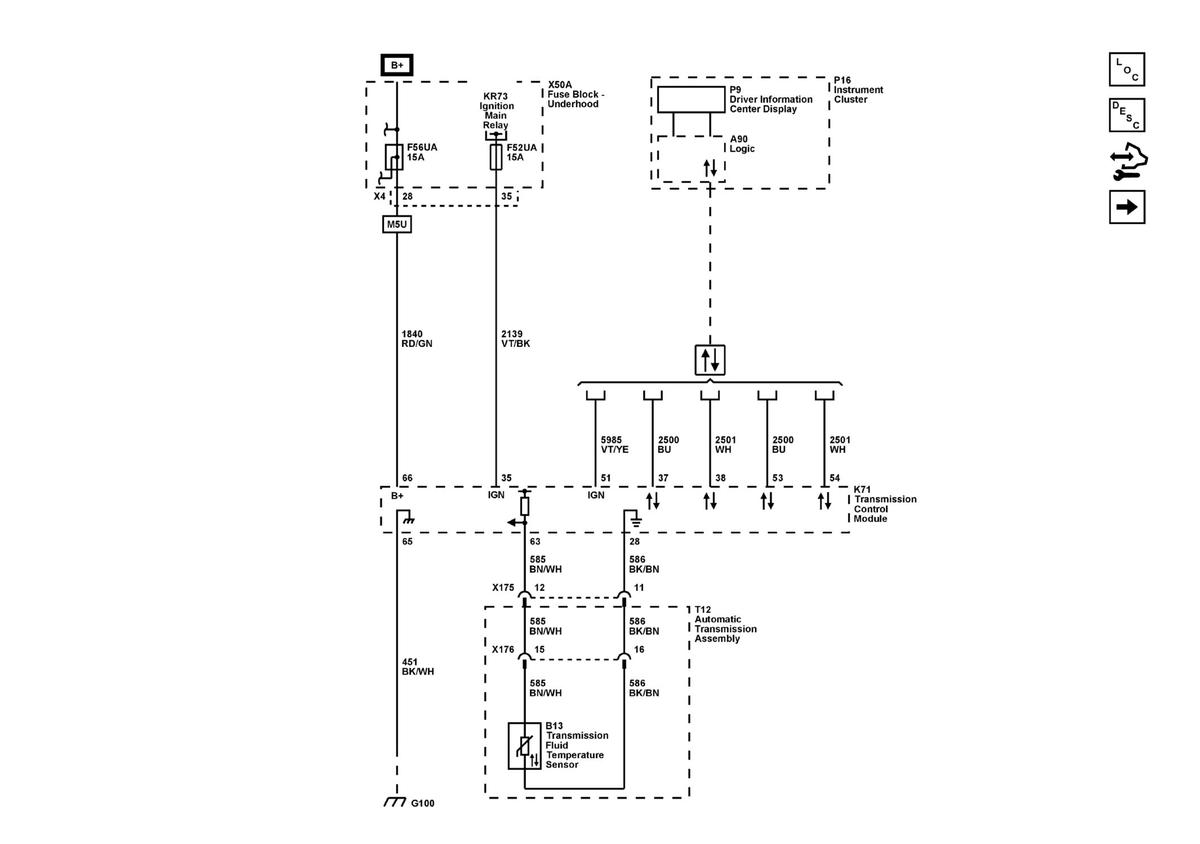

Power, Ground, Serial Data, MIL and Fluid Temperature

GM4934143

Courtesy of GENERAL MOTORS COMPANY
