Charge Air Cooler Inlet Pipe Replacement - Left Side (LF3)

Courtesy of GENERAL MOTORS COMPANY

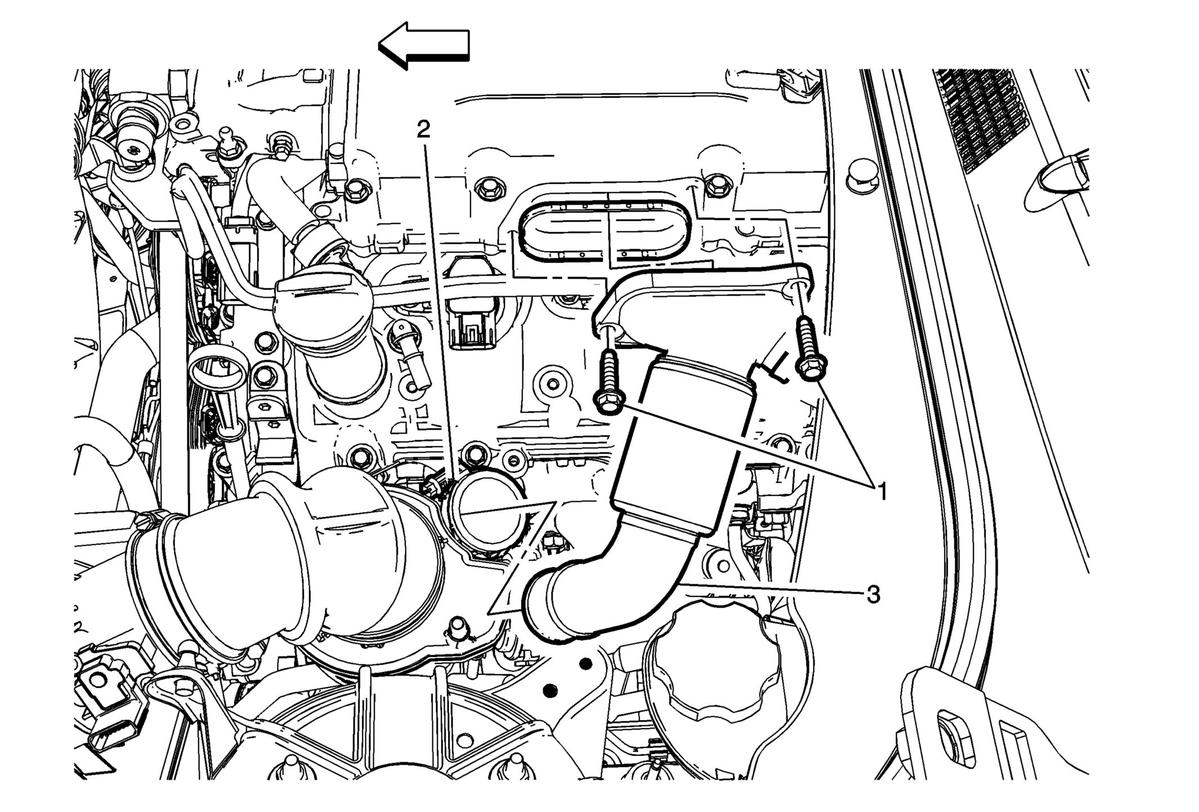

Callout	Component Name
Preliminary Procedure Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement (LF3) . Disconnect the charge air bypass valve left side from charge air cooler inlet pipe. Refer to Charge Air Bypass Valve Replacement - Left Side (LF3) .
1	Charge Air Cooler Inlet Pipe Bolts (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Charge Air Cooler Inlet Pipe Clamp
3	Charge Air Cooler Inlet Pipe Procedure Install NEW charge air cooler inlet pipe seal.
