Front Side Door Window Inner Sealing Strip Replacement

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front side door window garnish molding. Refer to Front Side Door Window Garnish Molding Replacement .

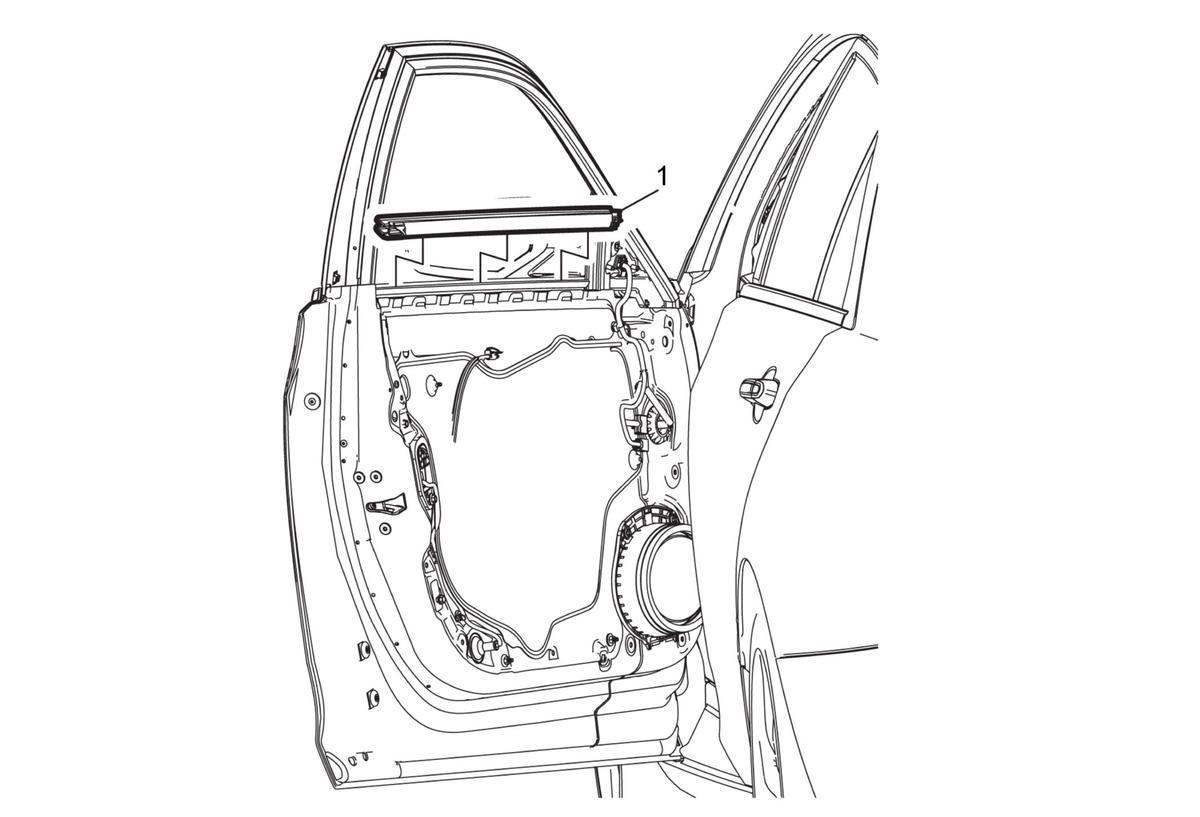

1	Front Side Door Window Inner Sealing Strip Procedure Grasp one end of the sealing strip lift upward to release it from the pinchweld flange. Start at one end fully seating the sealing strip on the pinchweld flange of the door.

Callout

Component Name

Preliminary Procedure
Remove the front side door window garnish molding. Refer to Front Side Door Window Garnish Molding Replacement .

Front Side Door Window Inner Sealing Strip

Procedure

Grasp one end of the sealing strip lift upward to release it from the pinchweld flange.
Start at one end fully seating the sealing strip on the pinchweld flange of the door.
