Roof Rail Front Assist Handle Bracket Replacement

Courtesy of GENERAL MOTORS COMPANY

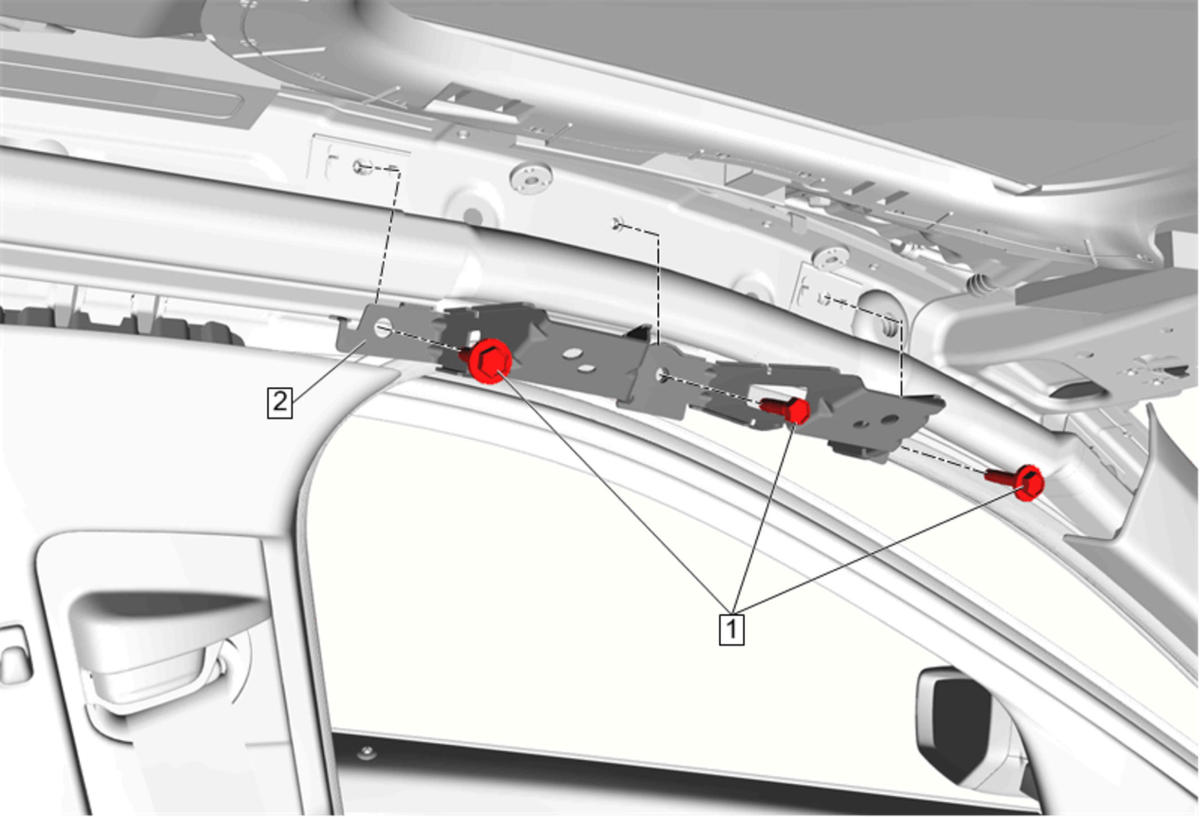

Callout	Component Name
Preliminary Procedure  It is only necessary to lower the headliner. Only perform the steps in the headliner replacement procedure that will lower the headliner enough to gain access to the part. Headlining Trim Panel Replacement (Without Sunroof) , or Headlining Trim Panel Replacement (With Sunroof)
1	Roof Rail Front Assist Handle Bracket Screw [3x] CAUTION: Refer to Fastener Caution . Tighten  9 N.m (80 lb in)
2	Roof Rail Front Assist Handle Bracket
