Radio Front Side Door Speaker Replacement

Courtesy of GENERAL MOTORS COMPANY

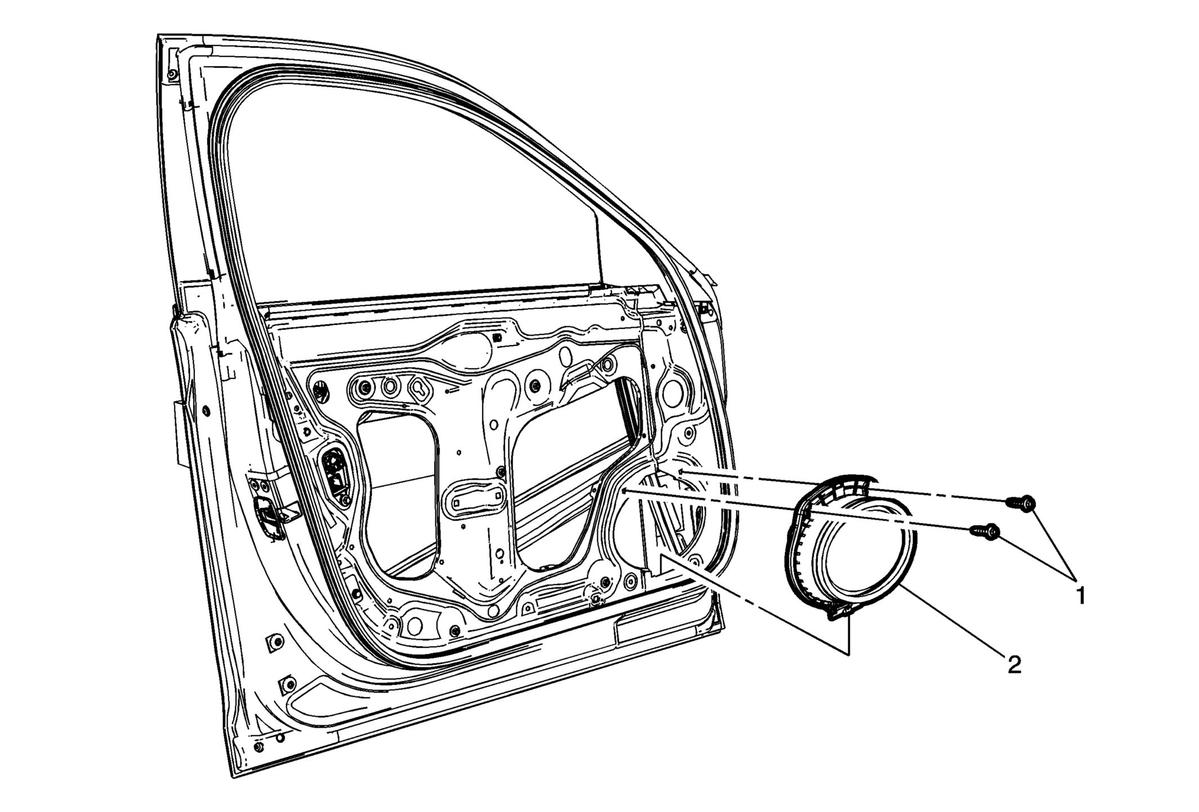

Callout	Component Name
Preliminary Procedure Remove the front side door trim. Refer to Front Side Door Trim Replacement .
1	Radio Front Side Door Speaker Fastener (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Radio Front Side Door Speaker Procedure Release the clip retaining the speaker to the door frame. Disconnect the electrical connector. Unclip the wire harness from the speaker.

Callout

Component Name

Preliminary Procedure
Remove the front side door trim. Refer to Front Side Door Trim Replacement .

Radio Front Side Door Speaker Fastener (Qty: 2)

CAUTION:

Tighten
2.5 N.m (22 lb in)

Radio Front Side Door Speaker

Procedure
