Roof Console Opening Trim Plate Replacement

Courtesy of GENERAL MOTORS COMPANY

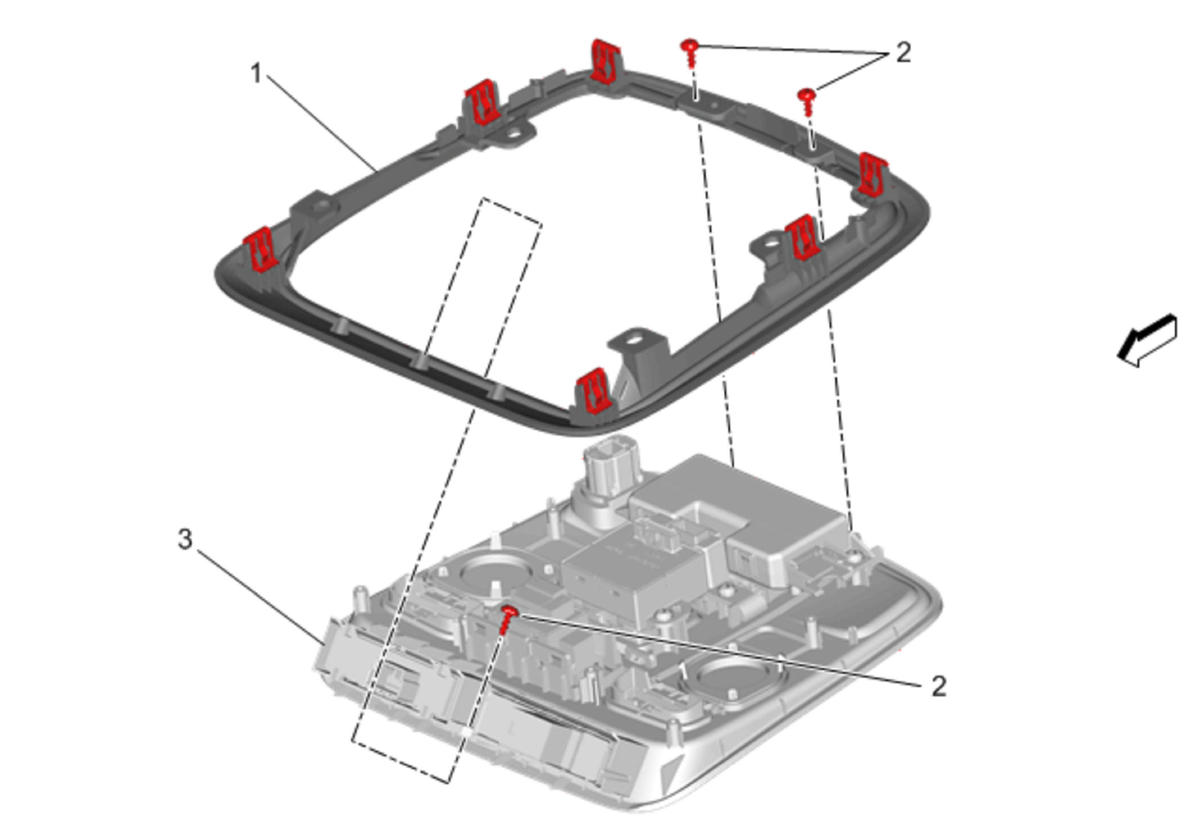

Callout	Component Name
Preliminary Procedure  Center Reading and Courtesy Lamp Replacement
1	Roof Console
2	Roof Console Bolt [3x] CAUTION: Refer to Fastener Caution . Tighten  1.5 N.m (13 lb in)
3	Roof Console Opening Trim Plate Procedure  Transfer components as necessary.
