Roof Console Accessory Switch Trim Plate Replacement

Courtesy of GENERAL MOTORS COMPANY

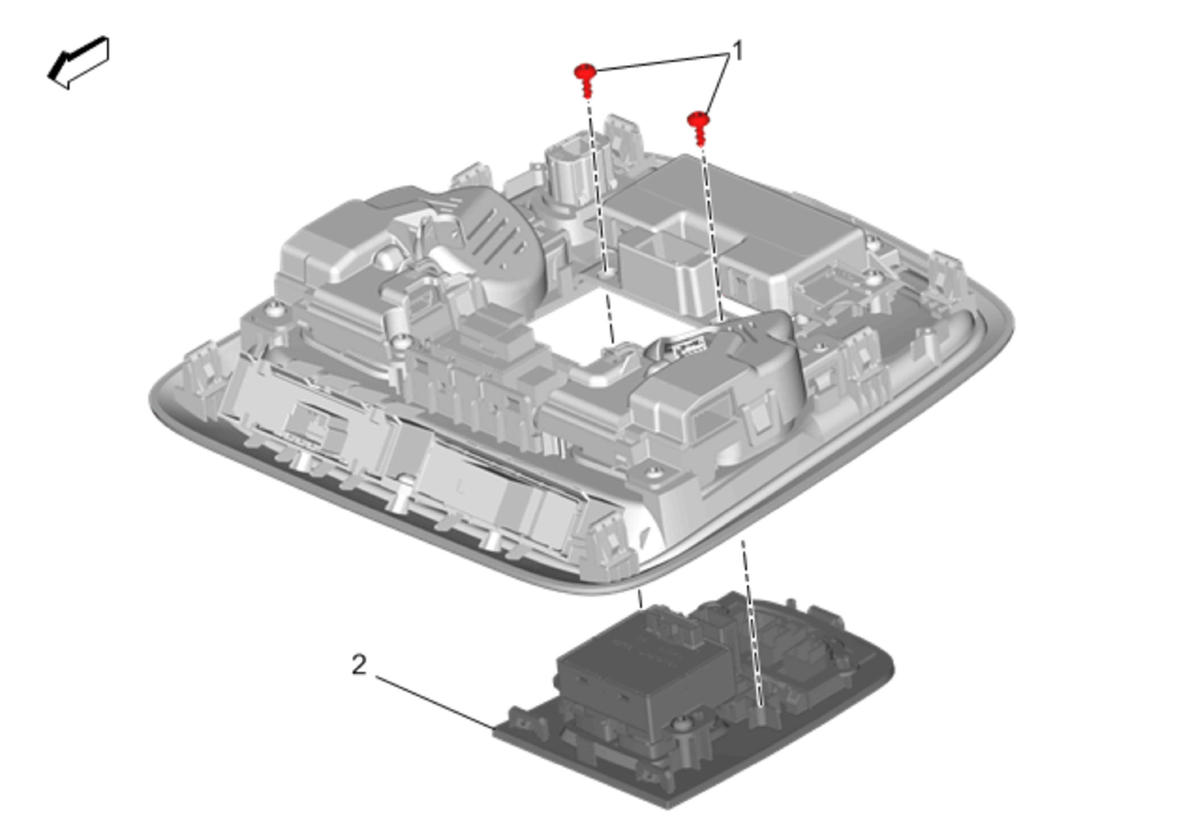

Callout	Component Name
Preliminary Procedure  Roof Console Replacement
1	Roof Console Bolt [2x] CAUTION: Refer to Fastener Caution . Tighten  1.5 N.m (13 lb in)
2	Roof Console Accessory Switch Trim Plate Procedure  Transfer components as necessary.
