Installation Procedure

  1. Instrument Panel Trim Pad (2) - Install
    GM3454111Courtesy of GENERAL MOTORS COMPANY
  2. Instrument Panel Upper Bolt (1) - Install and tighten [9x]2.5 N.m (22 lb in)

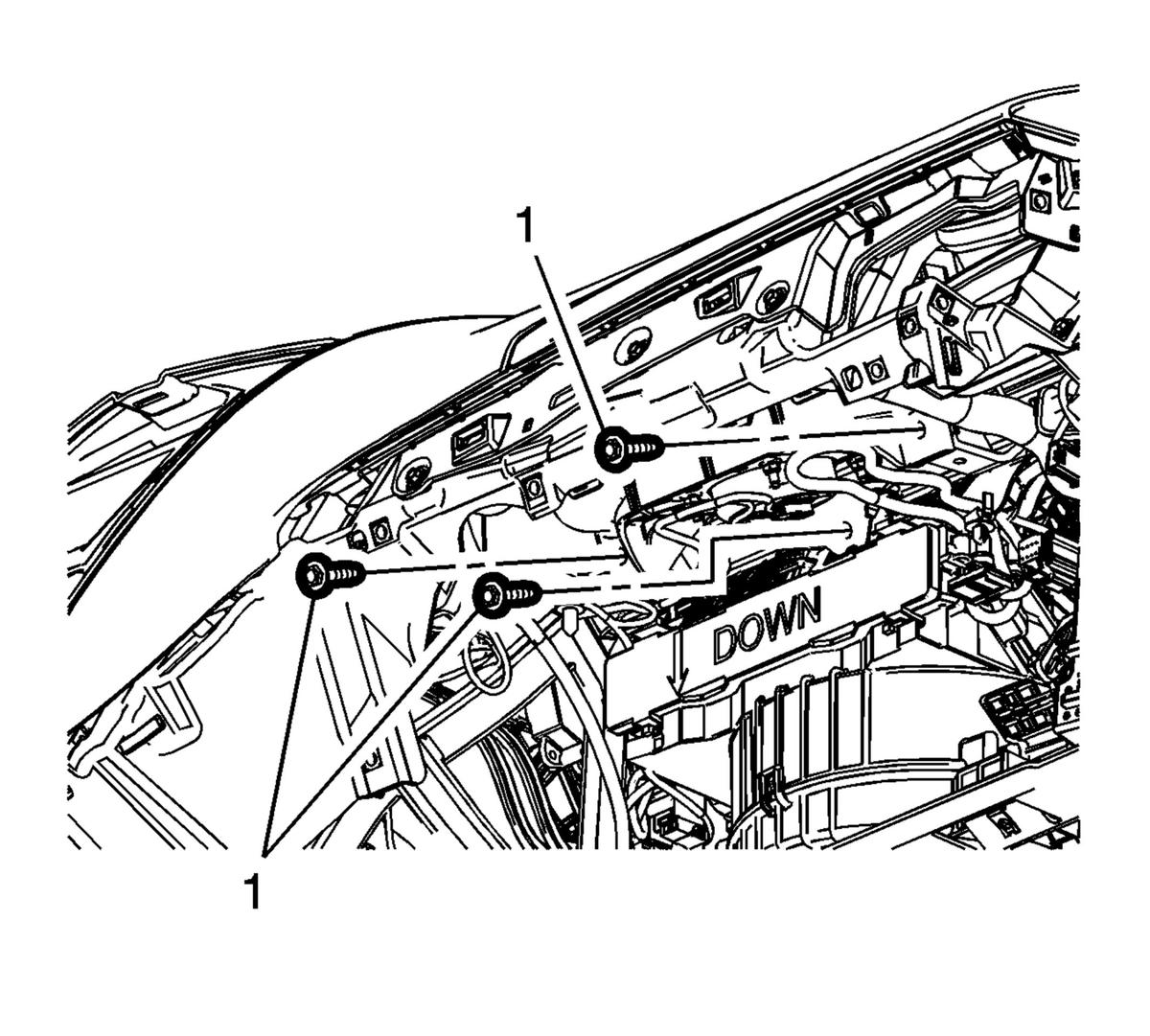

  3. Instrument Panel Airbag Bolt (1) - Install and tighten [3x]9 N.m (80 lb in)
    GM3453989Courtesy of GENERAL MOTORS COMPANY
  4. Connect the instrument panel airbag electrical connector from the instrument panel harness.
  5. Instrument Panel Compartment (2) - Install - Instrument Panel Compartment Replacement
    GM3453956Courtesy of GENERAL MOTORS COMPANY
  6. Instrument Panel Lower Center Trim Panel - Left Side (2) - Install - Instrument Panel Lower Center Trim Panel Replacement (Right Side) Instrument Panel Lower Center Trim Panel Replacement (Left Side)
    GM4071676Courtesy of GENERAL MOTORS COMPANY
  7. Windshield Garnish Molding (1) - Install - Windshield Garnish Molding Replacement
    GM3461941Courtesy of GENERAL MOTORS COMPANY
  8. Enable the SIR System. SIR Disabling and Enabling
