Instrument Panel Lower Extension Insulator Replacement

Courtesy of GENERAL MOTORS COMPANY

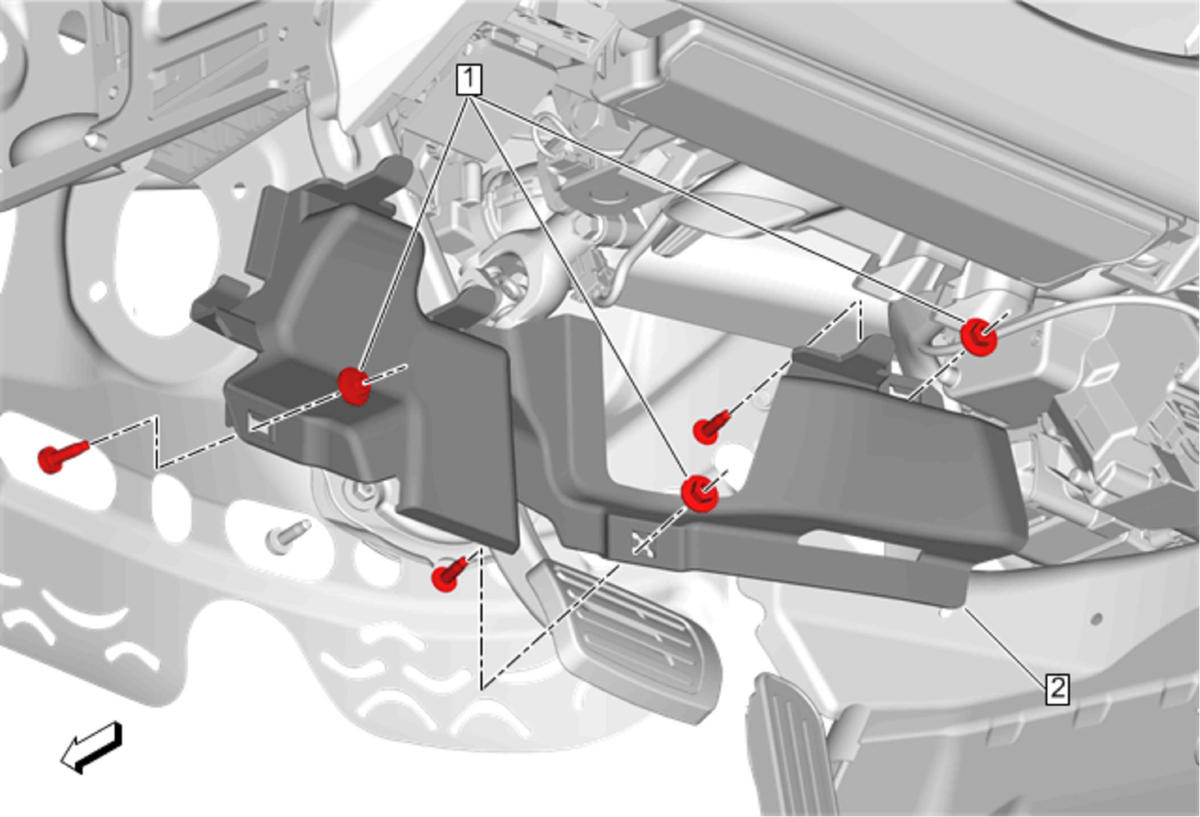

Callout	Component Name
Preliminary Procedure  Instrument Panel Lower Trim Panel Insulator Replacement - Left Side
1	Instrument Panel Insulator Nut [3x] CAUTION: Refer to Fastener Caution . Tighten  6 N.m (53 lb in)
2	Instrument Panel Lower Extension Insulator
