Instrument Panel Compartment Door Latch Actuator Replacement

Courtesy of GENERAL MOTORS COMPANY

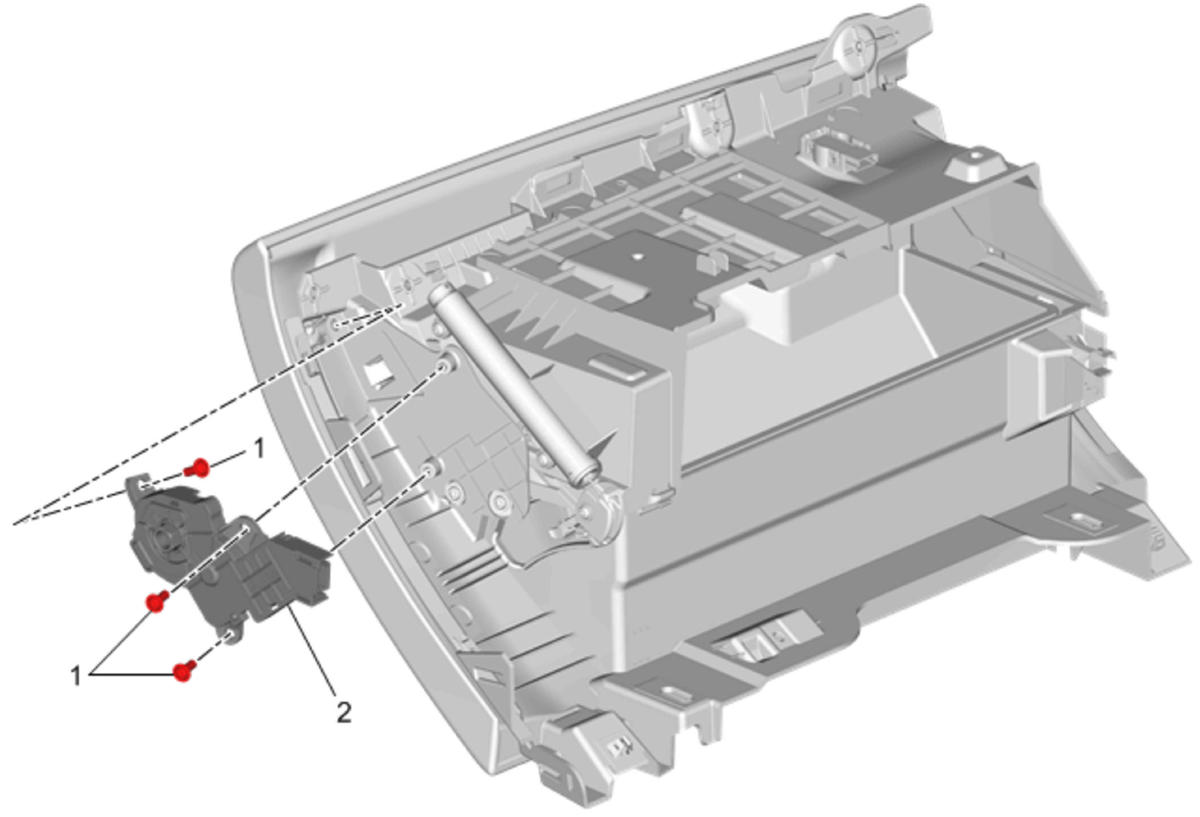

Callout	Component Name
Preliminary Procedure  Instrument Panel Compartment Replacement
1	Instrument Panel Compartment Bolt to Latch Actuator [3x] CAUTION: Refer to Fastener Caution . Tighten  1.5 N.m (13 lb in)
2	Instrument Panel Compartment Door Latch Actuator
