Instrument Panel Compartment Door Dampener Replacement

Courtesy of GENERAL MOTORS COMPANY

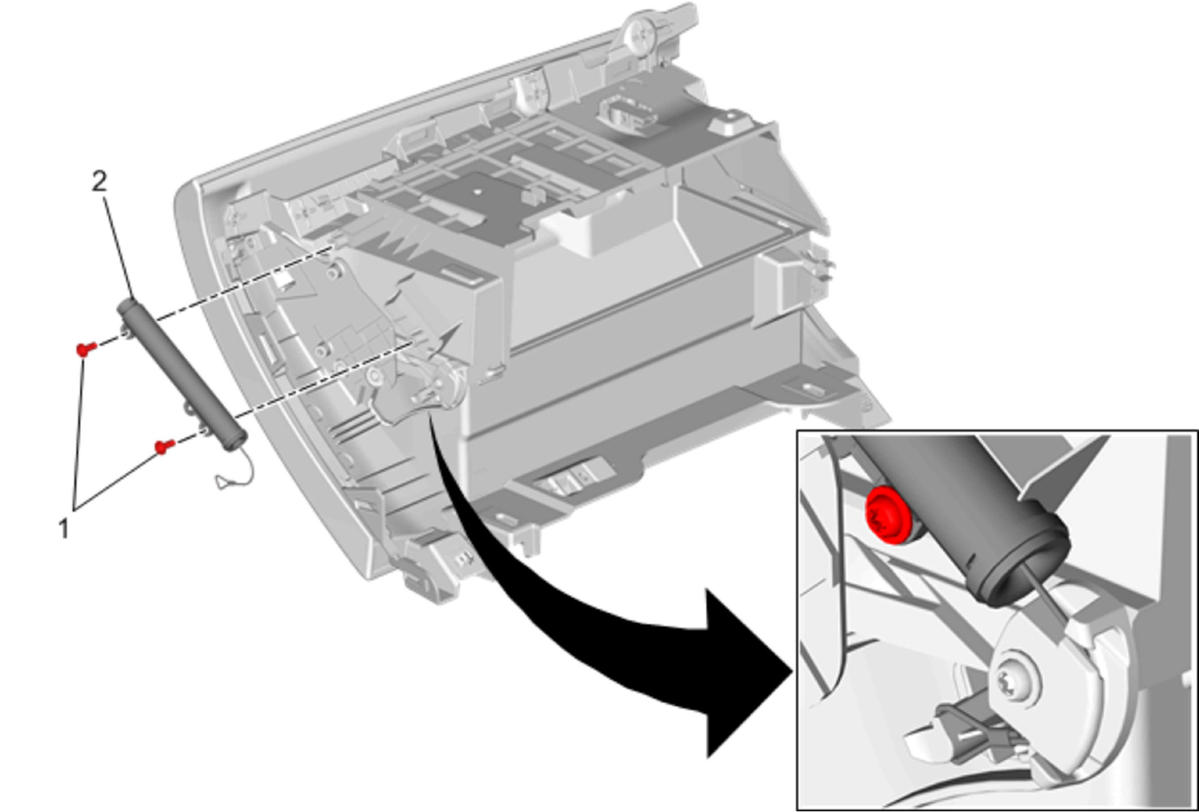

Callout	Component Name
Preliminary Procedure  Instrument Panel Compartment Door Latch Actuator Replacement
1	Instrument Panel Compartment Bolt to Door Dampener [2x] CAUTION: Refer to Fastener Caution . Tighten  1.5 N.m (13 lb in)
2	Instrument Panel Compartment Door Dampener Procedure  Disconnect the door dampener from the door stop and retainer.
