Installation Procedure

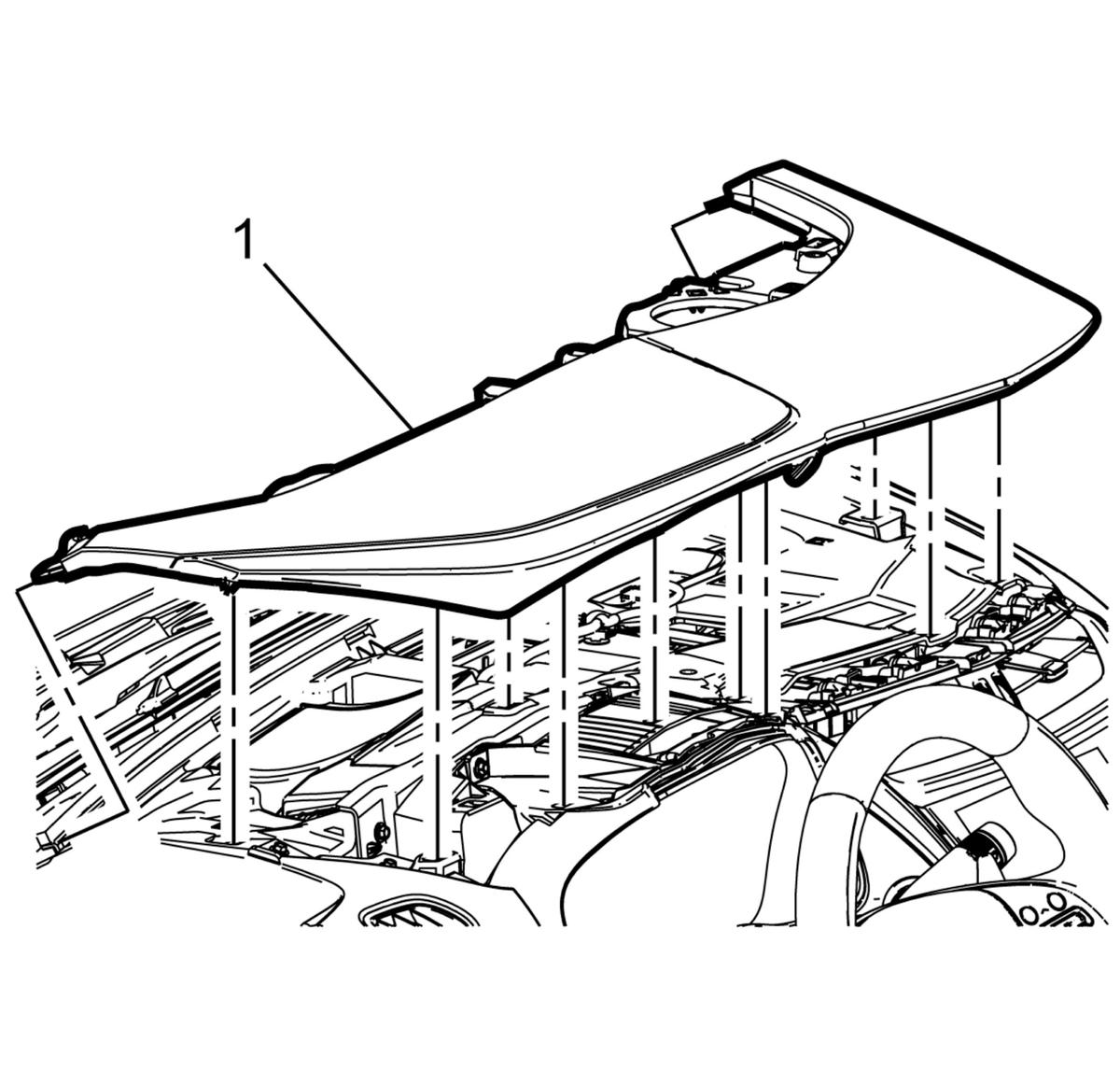

  1. Install the instrument panel center trim pad.
    GM3448460Courtesy of GENERAL MOTORS COMPANY

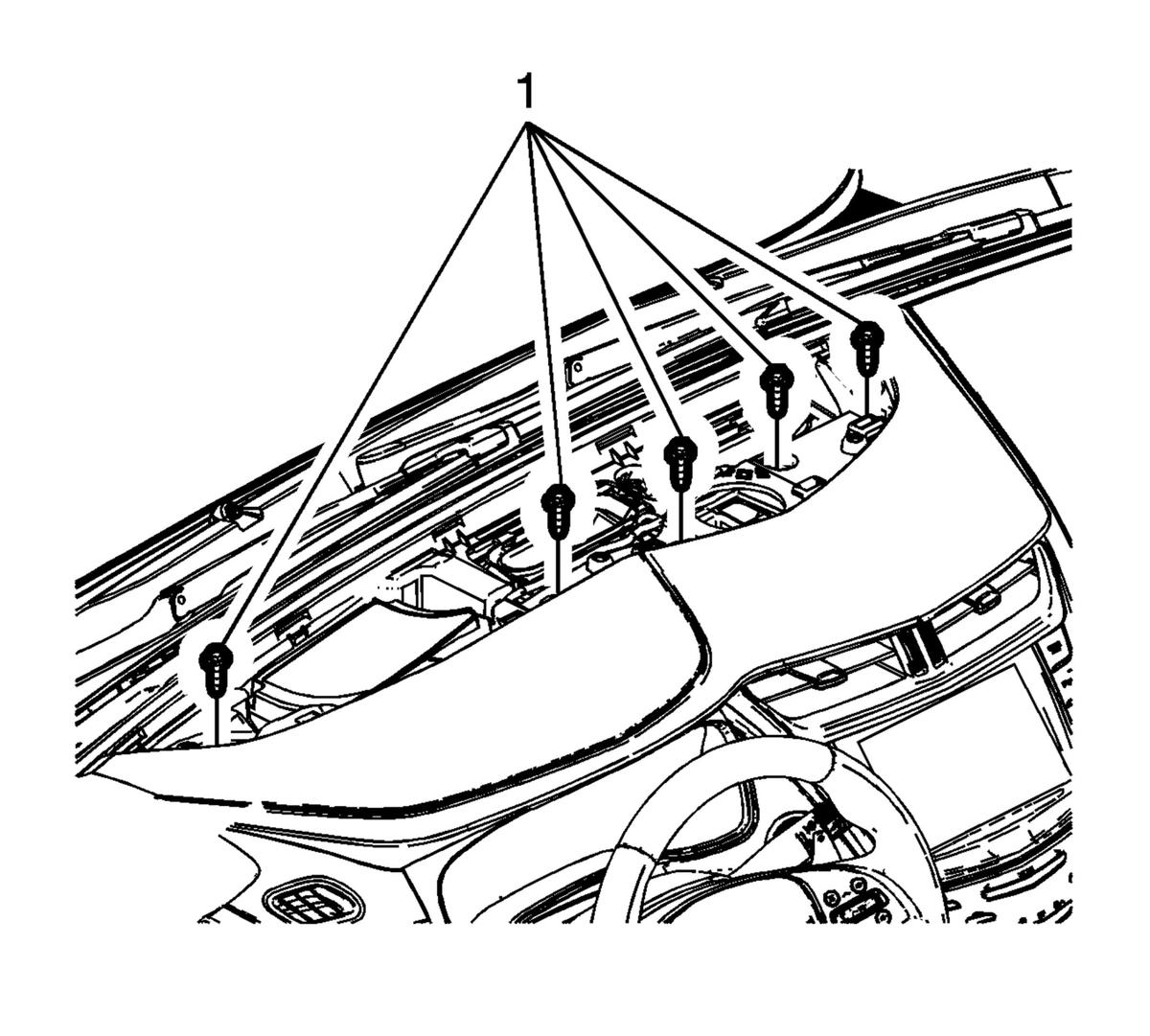

  2. Install the instrument panel upper bolt (1) and tighten to 2.5 N.m (22 lb in).
    GM3448441Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  3. Install the radio front speaker. Refer to Radio Front Speaker Replacement .
