Front Floor Rear Console Trim Plate Replacement

Courtesy of GENERAL MOTORS COMPANY

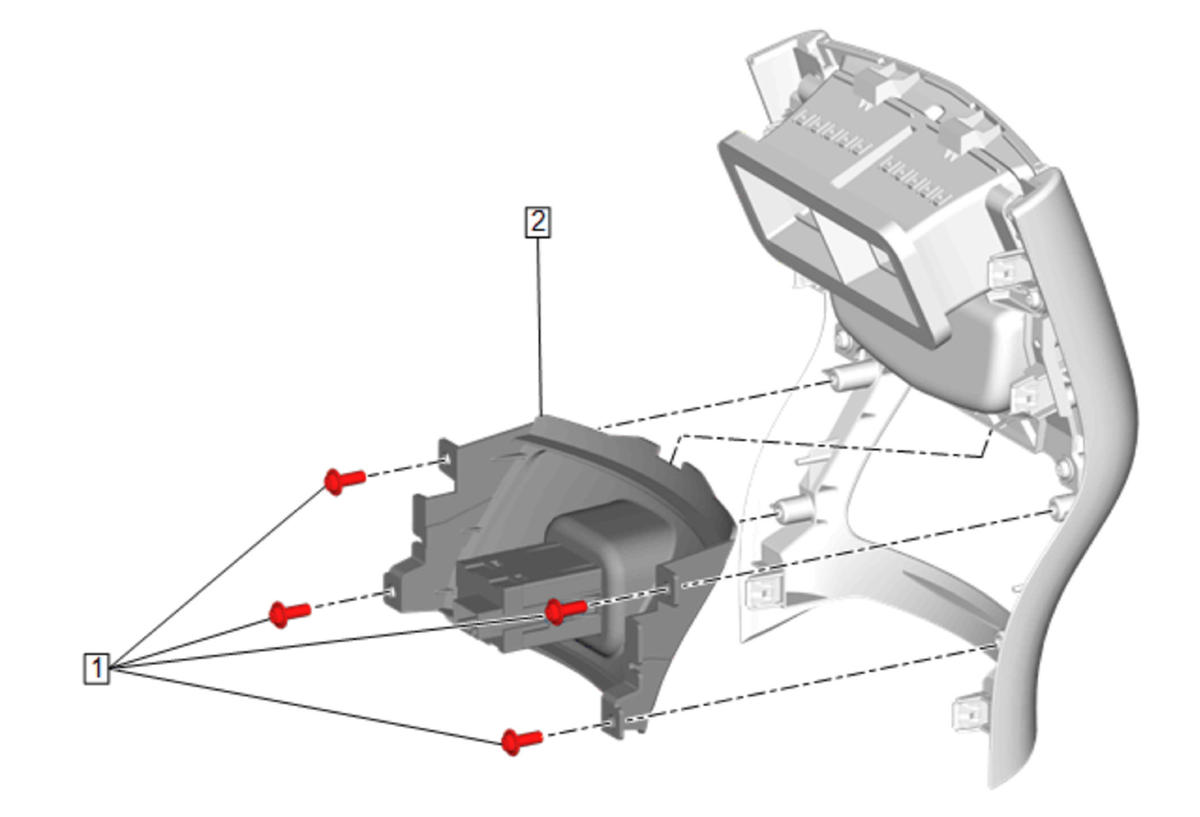

Callout	Component Name
Preliminary Procedure  Front Floor Console Rear Trim Panel Replacement
1	Front Floor Rear Trim Plate Bolt [4x] CAUTION: Refer to Fastener Caution . Tighten  1.5 N.m (13 lb in)
2	Front Floor Rear Console Trim Plate Procedure  Transfer components as necessary.
